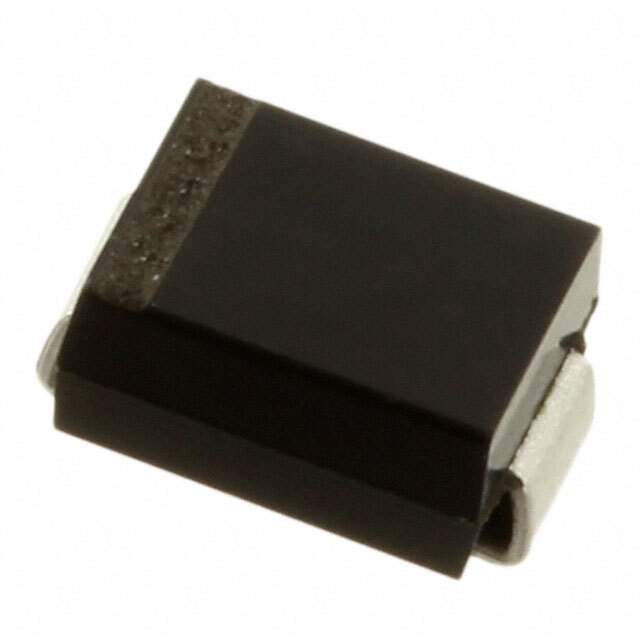

The 1SMB6.5CA TR13 is a transient voltage suppressor (TVS) diode manufactured by Central Semiconductor Corp. It is specifically designed to protect sensitive electronic devices from voltage transients induced by various sources, such as electrostatic discharge (ESD), lightning strikes, and inductive switching. This bidirectional TVS diode is part of the 1SMB series, known for its compact size and high surge handling capability.

Applications

• Protection of sensitive electronic equipment
• I/O port protection
• Surge protection in consumer electronics
• Overvoltage protection in communication systems
• Automotive electronics protection

Features

• Bidirectional TVS diode
• Surface mount SMB package
• Glass passivated chip junction
• Excellent clamping capability
• High surge capability: 600W peak pulse power capability with a 10/1000μs waveform
• Fast response time: typically less than 1.0ps from 0 Volts to BV min
• Low incremental surge resistance
• RoHS compliant

Benefits

• Protects electronic devices from damaging voltage transients
• Enhances the reliability and lifespan of electronic equipment
• Reduces downtime and maintenance costs associated with transient voltage damage
• Provides a cost-effective solution for surge protection
• Easy to integrate into circuit designs

Additional Details

The 1SMB6.5CA TR13 features a stand-off voltage of 6.5V and a clamping voltage tailored to protect components operating at or near that voltage level. The 'CA' designation signifies that it is a bidirectional device, providing protection against both positive and negative voltage surges. The TR13 indicates tape and reel packaging for automated assembly. It is packaged in a SMB/DO-214AA package. The diode's fast response time ensures effective clamping of transient voltages, preventing damage to downstream components. It has an operating and storage temperature range of -55°C to +150°C.
