Same model may have multiple batches, images only for reference.

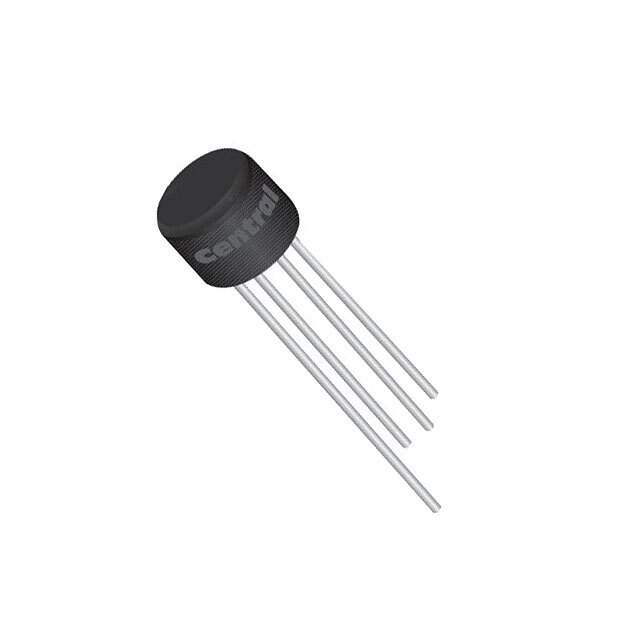

CBR1F-060 Real Image
Same model may have multiple batches, images only for reference.

CBR1F-060

Part No CBR1F-060
Manufacturer Central Semiconductor Corp
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 600V 1.5A A CASE / Bridge Rectifier Single Phase Standard 600 V Through Hole A Case
Datasheet
CBR1F-060 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Central Semiconductor Corp
Package Bulk
Product Status Obsolete
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 1.5 A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 1 A
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-Circular, A Case
Supplier Device Package A Case
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names CBR1F-060 PBFREE
Standard Package 250
Win Source Part Number 1120489-CBR1F-060
Ultra Librarian 3D Model Ultra Librarian CBR1F-060 CAD Model

Description

The 1120489-CBR1F-060 is a single-phase bridge rectifier diode with a maximum peak reverse voltage of 600 V and a current rating of 1.5 A.

  • Maximum Peak Reverse Voltage: 600 V
  • Current Rating: 1.5 A
  • Forward Voltage: 1.3 V @ 1 A
  • Reverse Leakage Current: 10 µA @ 600 V
  • Mounting: Through-hole mounting
  • Case Package: 4-circular A case package
  • Operating Temperature: Between -65°C to 150°C
  • Product Status: Obsolete
  • ECCN: EAR99
