Same model may have multiple batches, images only for reference.

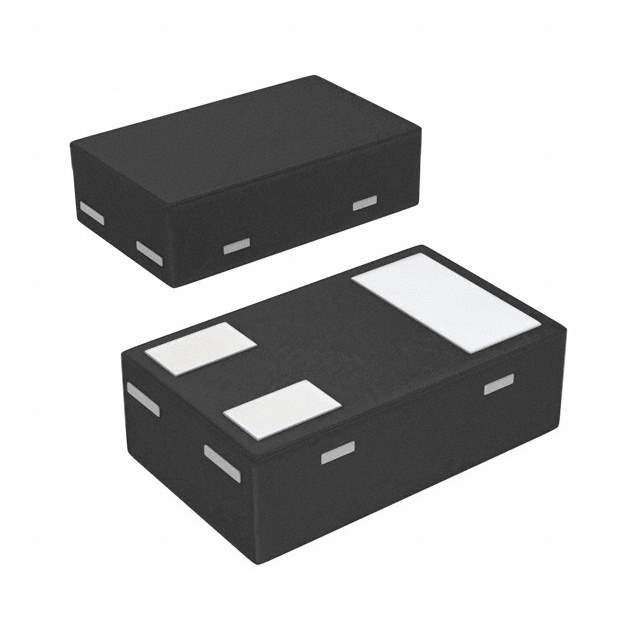

CEDM7001VL TR Real Image
Same model may have multiple batches, images only for reference.

CEDM7001VL TR

Part No CEDM7001VL TR
Manufacturer Central Semiconductor Corp
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 20V 0.1A SOT883
Datasheet
CEDM7001VL TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 100mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4V
Gate-Source Threshold Voltage 900mV @ 250μA
Max Gate Charge 0.57nC @ 4.5V
Max Input Capacitance 9pF @ 3V
Maximum Gate-Source Voltage 10V
Power Dissipation (Max) 100mW (Ta)
Maximum Rds On at Id,Vgs 3 Ohm @ 10mA, 4V
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-883VL
Dimension SC-101, SOT-883
Win Source Part Number 100593-CEDM7001VL TR
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian CEDM7001VL TR CAD Model

Description

Product Overview

The CEDM7001VL TR offers top-tier performance for a range of electronic applications. Its unique configuration ensures optimal functionality in diverse environments.

Features and Benefits

  • Advanced electronic architecture
  • Cost-effectiveness
  • Low power consumption
  • Enhanced signal integrity

Applications

  • Wireless communication systems
  • Signal processing units
  • Home automation devices
  • Wearable technology

Ideal for projects that require a balance of performance and efficiency.
