Same model may have multiple batches, images only for reference.

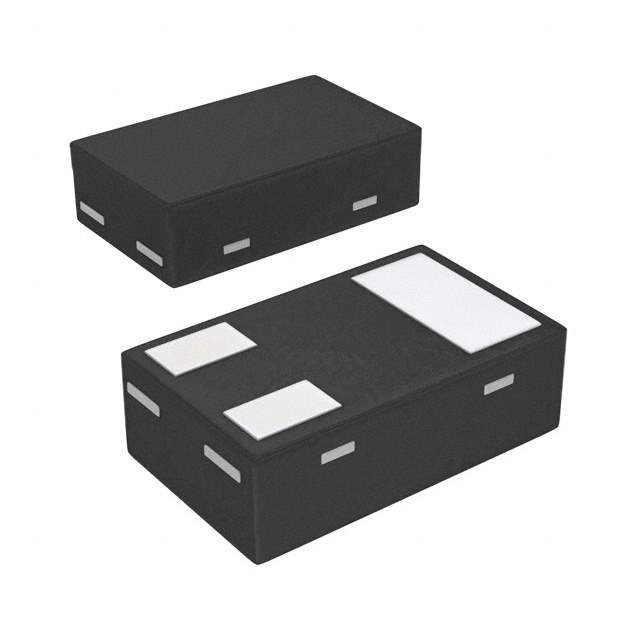

CEDM7004VL TR Real Image
Same model may have multiple batches, images only for reference.

CEDM7004VL TR

Part No CEDM7004VL TR
Manufacturer Central Semiconductor Corp
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 0.45A SOT883
Datasheet
CEDM7004VL TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 450mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 0.79nC @ 4.5V
Max Input Capacitance 43pF @ 25V
Maximum Gate-Source Voltage 8V
Power Dissipation (Max) 100mW (Ta)
Maximum Rds On at Id,Vgs 460 mOhm @ 200mA, 4.5V
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-883VL
Dimension SC-101, SOT-883
Win Source Part Number 111299-CEDM7004VL TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CEDM7004VL TR CAD Model

Description

Product Overview

The CEDM7004VL TR is engineered for excellence in electronic applications, providing a perfect combination of performance and durability.

Features and Benefits

  • High-speed processing capability
  • Thermal stability at extreme conditions
  • Compact footprint for space-constrained applications
  • Versatile design for various applications

Applications

  • High-performance computing
  • Automotive electronics
  • Mobile communication devices
  • Medical instrumentation

Perfect for applications that demand robustness and high-speed processing.
