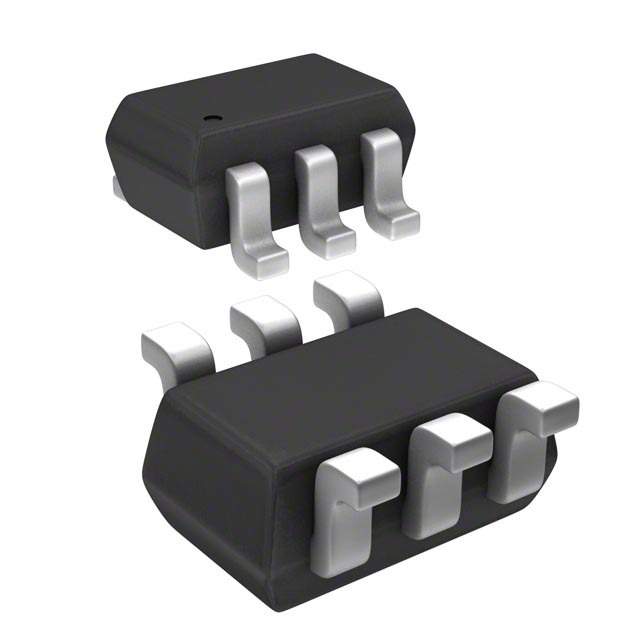

CMKD7000 TR Real Image
Same model may have multiple batches, images only for reference.

CMKD7000 TR

Part No CMKD7000 TR
Manufacturer Central Semiconductor Corp
Catalog Diodes, Rectifiers - Arrays
Description DIODE SWITCHING 100V SOT363
Datasheet
CMKD7000 TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Reel - TR
Status Active
Diode Configuration 2 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) (per Diode) 200mA
Voltage - Forward (Vf) (Max) @ If 1.1V @ 100mA
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage @ Vr 500nA @ 100V
Operating Temperature - Junction -65°C to 150°C
Mounting SMD (SMT)
Case / Package SOT-363
Win Source Part Number 1029609-CMKD7000 TR
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management, Safety
Ultra Librarian 3D Model Ultra Librarian CMKD7000 TR CAD Model

Description

The Central Semiconductor Corp CMKD7000 TR is a standard diode with a voltage - DC reverse (Vr) (Max) of 100V.

  • Voltage - DC Reverse (Vr) (Max): 100V
  • Voltage - Forward (Vf) (Max) @ If: 1.1V @ 100mA
  • Reverse Recovery Time (trr): 4ns
  • Current - Reverse Leakage @ Vr: 500nA @ 100V
  • Operating Temperature - Junction Range: -65°C to 150°C
  • Diode Configuration: 2 pair series connection
  • Average Rectified Current (Io) (per diode): 200mA
  • Popularity: Medium
  • Supply and Demand Status: Balanced
