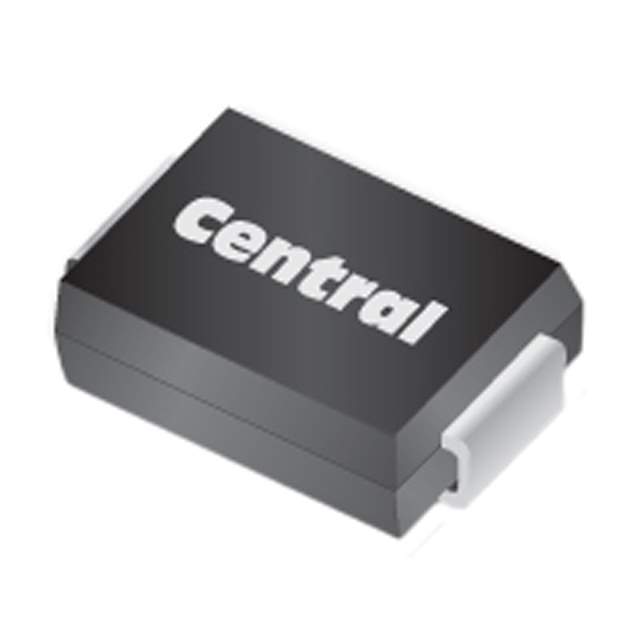

CMSH3-40 TR13 PBFREE Real Image
Same model may have multiple batches, images only for reference.

CMSH3-40 TR13 PBFREE

Part No CMSH3-40 TR13 PBFREE
Manufacturer Central Semiconductor Corp
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 3A SMC / Diode Schottky 40 V 3A Surface Mount SMC
Datasheet
CMSH3-40 TR13 PBFREE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Central Semiconductor Corp
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 500 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Mounting SMD (SMT)
Package / Case DO-214AB, SMC
Supplier Device Package SMC
Operating Temperature - Junction -65°C ~ 150°C
Base Product Number CMSH3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names CMSH3-40TR-ND,CMSH3-40 DKR-ND,1514-CMSH3-40TR13PBFREETR,CMSH3-40 CT-ND,CMSH3-40DKR,CMSH3-40 TR-ND,CMSH3-40DKR-ND,CMSH3-40 CT,CMSH3-40CT,1514-CMSH3-40TR13PBFREEDKR,CMSH3-40 TR13 LEAD FREE,CMSH3-40 TR,CMSH3-40TR,CMSH3-40 DKR,CMSH3-40CT-ND,CMSH3-40 TR13,1514-CMSH3-40TR13PBFREECT
Standard Package 3,000
Win Source Part Number 986235-CMSH3-40 TR13 PBFREE
Ultra Librarian 3D Model Ultra Librarian CMSH3-40 TR13 PBFREE CAD Model

Description

The Central Semiconductor Corp CMSH3-40 TR13 PBFREE is a Schottky diode used in rectifiers for single applications.

  • Application: Rectifier, Single
  • Mounting Type: SMD
  • Voltage - DC Reverse (Vr): 40V
  • Current - Average Rectified (Io): 3A
  • Voltage - Forward (Vf): 500mV @ 3A
  • Current - Reverse Leakage (Ir): 500μA @ 40V
  • Series: CMSH3
  • Maximum Power Dissipation: 1500W
  • Package: DO-214AB, SMC
  • Supplier Device Package: SMC
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 39 weeks
