Same model may have multiple batches, images only for reference.

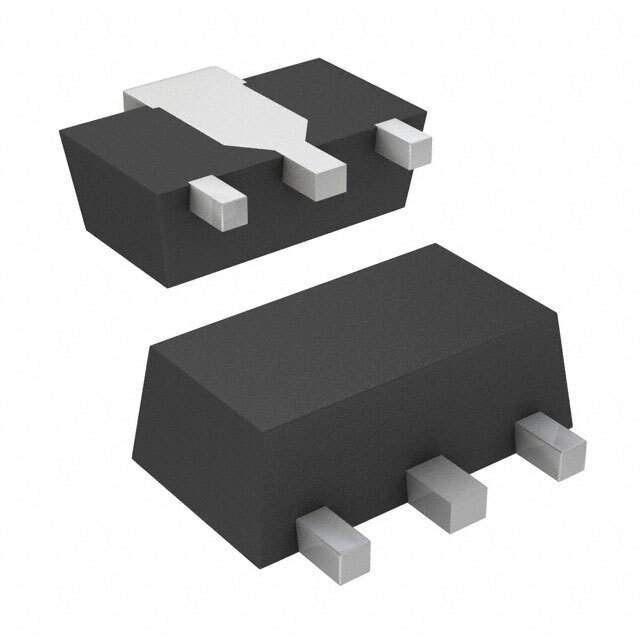

CXT3906 TR Real Image
Same model may have multiple batches, images only for reference.

CXT3906 TR

Part No CXT3906 TR
Manufacturer Central Semiconductor Corp
Catalog Transistors (BJT) - Single
Description TRANS PNP 40V 0.2A SOT-89
Datasheet
CXT3906 TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Reel package
Transistor Type PNP
Current - Collector (Ic) (Maximum) 200mA
Voltage - Collector Emitter Breakdown (Maximum) 40V
Vce Saturation (Maximum) @ Ib, Ic 400mV @ 5mA, 50mA
DC Current Gain (hFE) (Minimum) @ Ic, Vce 100 @ 10mA, 1V
Power - Max 1.2W
Frequency - Transition 250MHz
Operating Temperature Range -65°C ~ 150°C (TJ)
Mounting SMD
Package TO-243AA
Manufacturer Package SOT-89
Win Source Part Number 771986-CXT3906 TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CXT3906 TR CAD Model

Description

The CXT3906 TR by Central Semiconductor Corp is a PNP transistor that has a maximum power of 1.2W and a frequency transition of 250MHz.

  • Current Collector (Ic): 200mA
  • Voltage Collector Emitter Breakdown (Vce): 40V
  • Vce Saturation (maximum): 400mV @ 5mA, 50mA
  • DC Current Gain (hFE) (minimum): 100 @ 10mA, 1V
  • Supply and Demand Status: Balanced
