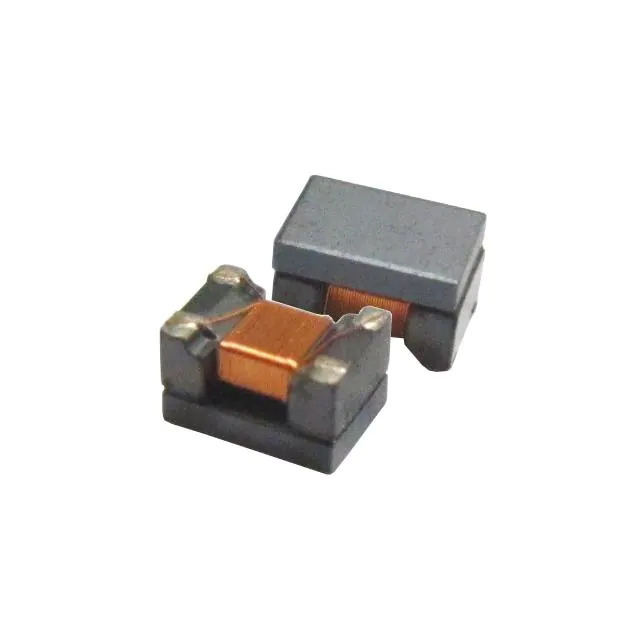

AWCU00321619222M02 Chilisin
Same model may have multiple batches, images only for reference.

AWCU00321619222M02

Part No AWCU00321619222M02
Manufacturer Chilisin
Catalog Common Mode Chokes
Description CMC 200MA 2LN 2.2KOHM SMD
Datasheet
AWCU00321619222M02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Chilisin Electronics
Series AWCU
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 2.2 kOhms @ 100 MHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 1.2Ohm
Voltage Rating - DC 50V
Voltage Rating - AC -
Temperature Range - Operating -50°C ~ 150°C
Ratings AEC-Q200
Approval Agency -
Features -
Mounting Type Surface Mount
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height (Max) 0.083" (2.10mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369377-AWCU00321619222M02
Ultra Librarian 3D Model Ultra Librarian AWCU00321619222M02 CAD Model

Description

The AWCU00321619222M02 is a common mode choke from Chilisin Electronics.

  • Series: AWCU
  • Application: Signal Line
  • Voltage Rating: 50V DC
  • Current Rating: 200mA
  • Impedance: 2.2 kOhms @ 100 MHz
  • Mounting Type: Surface Mount
  • Package Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height: 0.083" (2.10mm)
  • AEC-Q200: Yes
  • DC Resistance: 1.2 Ohm
