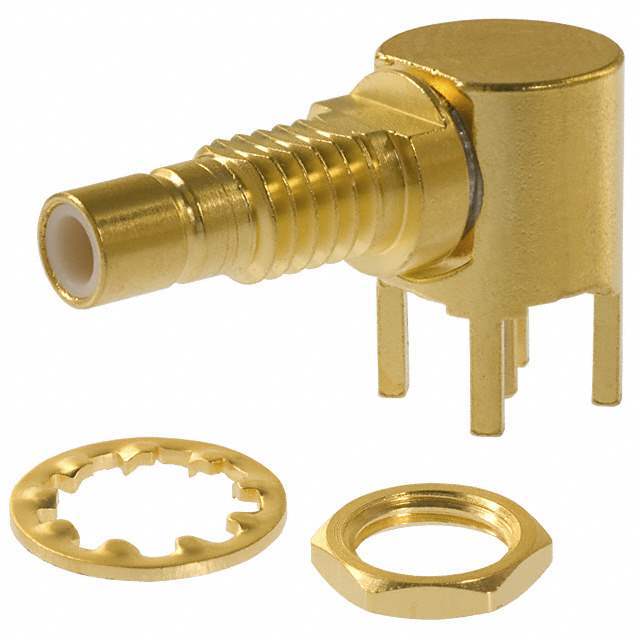

131-3701-341 Cinch Connectivity Solutions Johnson
Same model may have multiple batches, images only for reference.

131-3701-341

Part No 131-3701-341
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMB JACK R/A 50 OHM PCB
Datasheet
131-3701-341 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1209588-131-3701-341
Manufacturer Cinch Connectivity Solutions Johnson
Category Connectors, Interconnects- Coaxial Connectors (RF) -Coaxial Connector (RF) Assemblies
Package Bulk
Product Status Active
Connector Style SMB
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohms
Mounting Type Panel Mount, Through Hole, Right Angle
Ultra Librarian 3D Model Ultra Librarian 131-3701-341 CAD Model

Description

SMB Connector Jack, Male Pin 50 Ohms Panel Mount, Through Hole, Right Angle Solder
