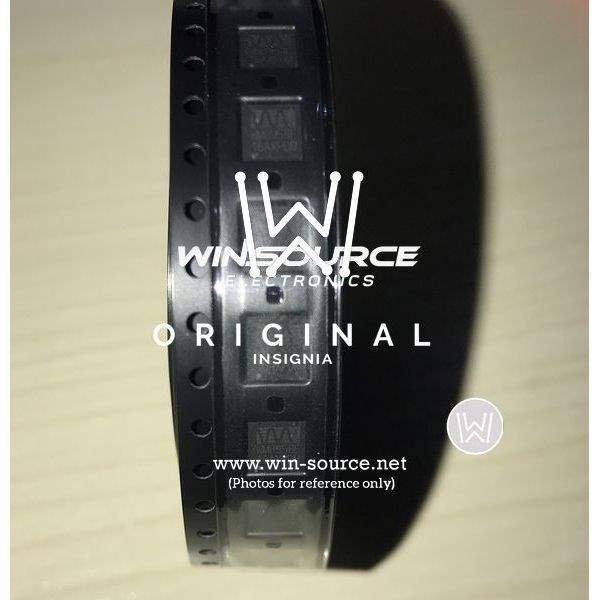

WM8958ECS/R Cirrus Logic Inc. WM8958ECS/R label picture WM8958ECS/R real image
Same model may have multiple batches, images only for reference.
WM8958ECS/R Cirrus Logic Inc. WM8958ECS/R label picture WM8958ECS/R real image
WM8958ECS/R Cirrus Logic Inc. WM8958ECS/R label picture WM8958ECS/R real image
Same model may have multiple batches, images only for reference.

WM8958ECS/R

Part No WM8958ECS/R
Manufacturer Cirrus Logic Inc.
Catalog Interface - CODECs
Description IC CODEC AUD HUB MULTI-CH 72WCSP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Cirrus Logic Inc.
Packaging Reel - TR
Status Active
Type Audio
Data Interface I2S, PCM
Resolution (Bits) 24 b
Number of ADCs / DACs 2 / 4
Sigma Delta Yes
S/N Ratio, ADCs / DACs (db) Typ 95 / 100
Analog Supply Voltage 1.71 V to 2 V
Digital Supply Voltage 1.62 V to 3.6 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)

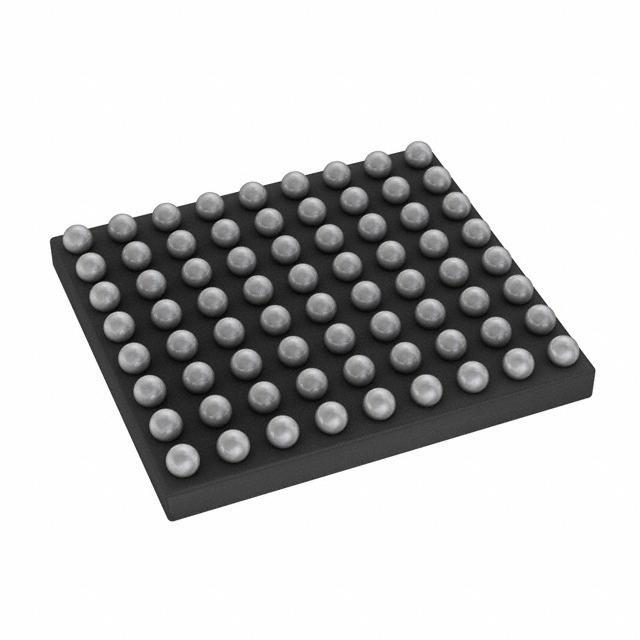

Case / Package 72-W-CSP (4.5x4.3)
Win Source Part Number 036511-WM8958ECS/R
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name WM8958
Introduction Date October 21, 2010
ECCN EAR99
Estimated EOL Date Unknown
Ultra Librarian 3D Model Ultra Librarian WM8958ECS/R CAD Model

Description

The Cirrus Logic WM8958ECS/R is an audio integrated circuit that features two ADCs and four DACs with a resolution of 24 bits.

  • Data Interface: I2S and PCM
  • Architecture: Sigma Delta
  • S/N Ratio (ADCs): 95 dB
  • S/N Ratio (DACs): 100 dB
  • Analog Supply Voltage: 1.71 V to 2 V
  • Digital Supply Voltage: 1.62 V to 3.6 V
  • Package: 72-W-CSP (4.5x4.3)
  • Temperature Range: -40°C to 85°C
  • Popularity: high
  • Supply: sufficient
