Same model may have multiple batches, images only for reference.

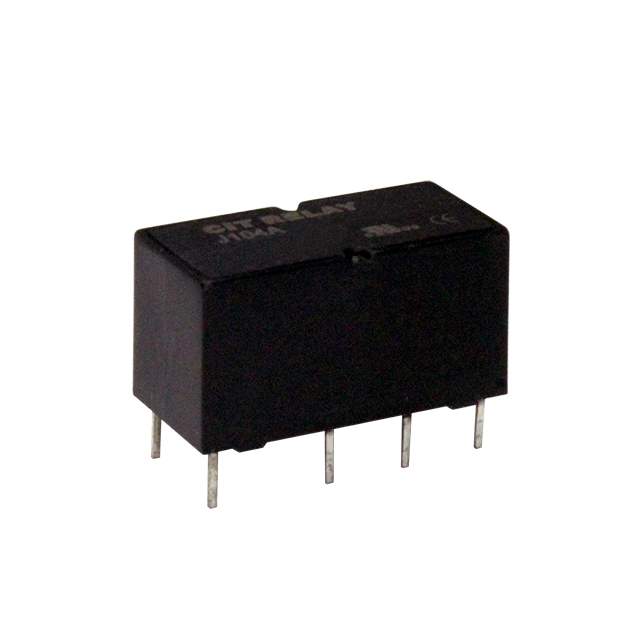

J104A2C12VDC.40S Real Image
Same model may have multiple batches, images only for reference.

J104A2C12VDC.40S

Part No J104A2C12VDC.40S
Manufacturer CIT Relay & Switch
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 3A 12V / General Purpose Relay DPDT (2 Form C) 12VDC Coil Through Hole
Datasheet
J104A2C12VDC.40S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr CIT Relay and Switch
Series J104
Package Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 3 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 4.5 ms
Release Time 1.5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi) , Gold (Au)
Relay Type General Purpose
Coil Resistance 360 Ohms
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
California Prop 65 Warning Information
Win Source Part Number 1341109-J104A2C12VDC.40S
Ultra Librarian 3D Model Ultra Librarian J104A2C12VDC.40S CAD Model

Description

The 1341109-J104A2C12VDC.40S electronic component is a power relay with a DPDT (2 Form C) contact form and is manufactured by CIT Relay and Switch.

  • Standard Package: 20
  • Coil Voltage: 12VDC
  • Coil Resistance: 360 Ohms
  • Contact Rating: 3A
  • Switching Voltage: 250VAC, 220VDC - Max
  • Rating: sealed - fully seal
  • Mounting Type: through-hole
  • Operating Temperature: -40°C ~ 85°C
  • REACH: unaffected
