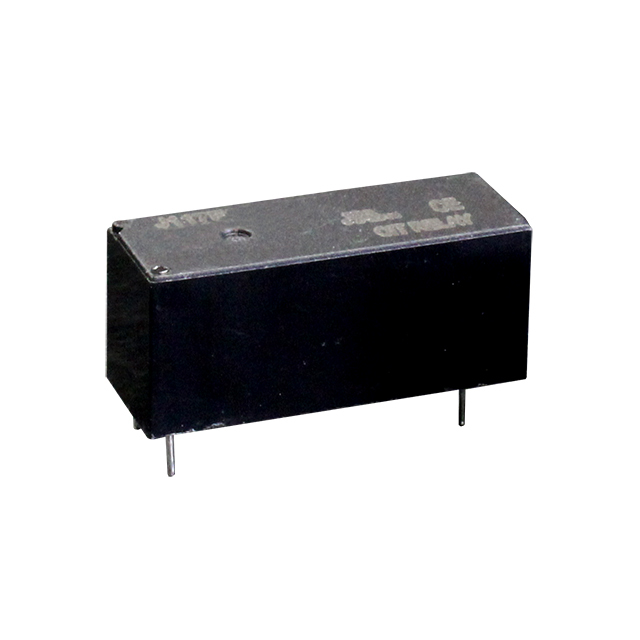

J117F1AS12VDC CIT Relay & Switch – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

J117F1AS12VDC

Part No J117F1AS12VDC
Manufacturer CIT Relay & Switch
Catalog Power Relays, Over 2 Amps
Description General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr CIT Relay and Switch
Series J117F
Packaging Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 400VAC, 150VDC - Max
Load - Max Switching 4000VA, 1500W
Coil Current 18.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -55°C ~ 125°C
Contact Material Silver Tin Oxide (AgSnO)
Approval Agency cURus
Relay Type General Purpose
Coil Resistance 655 Ohms
Base Product Number J117F1A
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1479306-J117F1AS12VDC
Ultra Librarian 3D Model Ultra Librarian J117F1AS12VDC CAD Model
