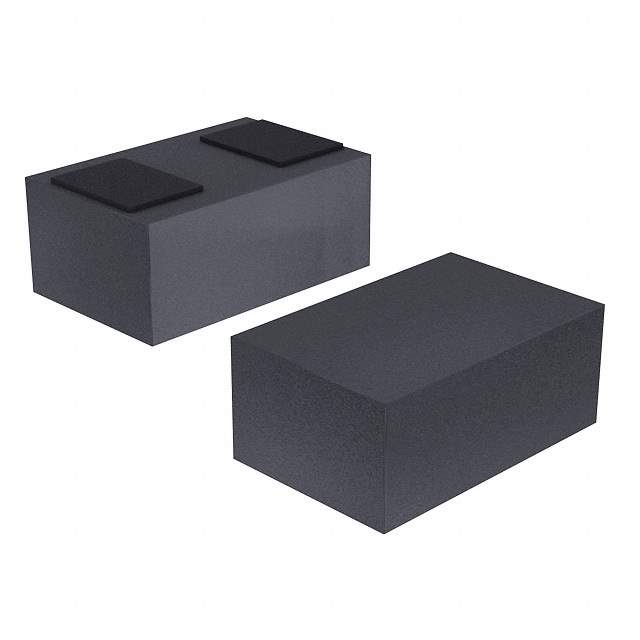

CPDER5V0C-HF

Part No CPDER5V0C-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 0503
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 6.1V
Applications General Purpose
Capacitance @ Frequency 25pF @ 1MHz
Mounting SMD (SMT)
Case / Package 0503/SOD-723F
Win Source Part Number 1030037-CPDER5V0C-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian CPDER5V0C-HF CAD Model

Description

Comchip Technology's CPDER5V0C-HF is a Zener diode designed for use in circuit protection applications.

  • Stand-off Voltage (Vwm): 5V
  • Minimum Breakdown Voltage: 6.1V
  • Capacitance: 25pF @ 1MHz
  • Type: Bidirectional
  • Package: 0503/SOD-723F case
  • Peak Pulse Current (Ippm): No specified peak pulse current (Ippm)
  • Power Dissipation (Pd): No specified power dissipation (Pd).
  • Supply and Demand Status: Balanced, and there are 4k pcs per package.
