Same model may have multiple batches, images only for reference.

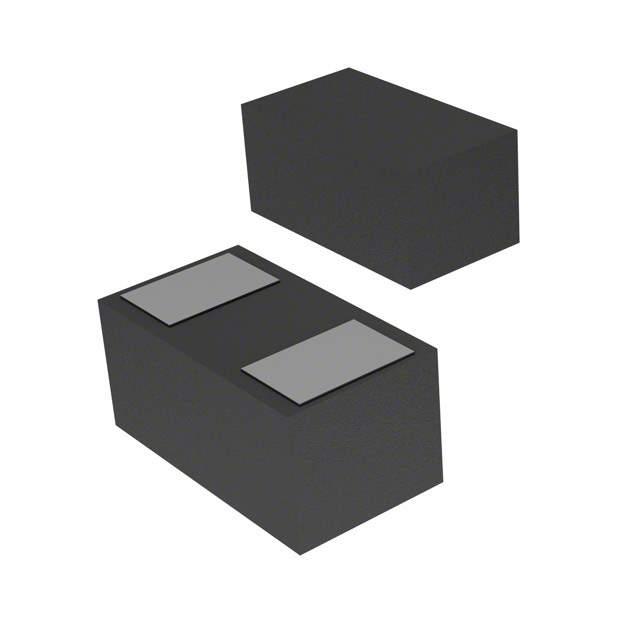

CPDUR5V0R-HF Real Image
Same model may have multiple batches, images only for reference.

CPDUR5V0R-HF

Part No CPDUR5V0R-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 13VC SOD-523F
Datasheet
CPDUR5V0R-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 5.6V
Max Clamping Voltage 13V
Peak Pulse Current(Ippm) 12A (8/20μs)
Applications General Purpose
Capacitance @ Frequency 20pF @ 1MHz
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 0603/SOD-523F
Win Source Part Number 1030119-CPDUR5V0R-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian CPDUR5V0R-HF CAD Model

Description

The Comchip Technology 1030119-CPDUR5V0R-HF is a bidirectional Zener diode designed for general-purpose applications.

  • Manufacturer: Comchip Technology
  • Application: General-Purpose Applications
  • Mounting Type: SMD (SMT)
  • Capacitance: 20pF @ 1MHz
  • Minimum Breakdown Voltage: 5.6V
  • Maximum Clamping Voltage: 13V
  • Peak Pulse Current: 12A (8/20μs)
  • STAND-OFF Voltage: 5V (Max)
  • Temperature Range: -40°C to 150°C (TJ)
  • Category: Circuit Protection
  • Packaging: Reel of 4k pcs
