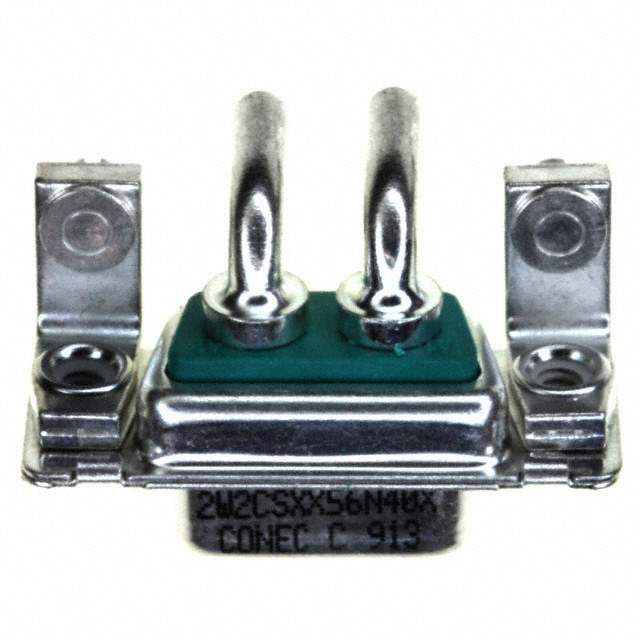

302W2CSXX56N40X Real Image
Same model may have multiple batches, images only for reference.

302W2CSXX56N40X

Part No 302W2CSXX56N40X
Manufacturer Conec
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT/PLUG 2P R/A SLDR / 2 (Power) Position D-Sub, Combo Receptacle, Female Sockets and Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Conec
Package Tray
Connector Style D-Sub, Combo
Connector Type Receptacle, Female Sockets and Male Pins
Number of Positions 2 (Power)
Number of Rows 1
Mounting Type Board Edge, Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E) - 2V2, 2W2C
Contact Type Power
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 20A
Backset Spacing 0.459" (11.65mm)
Features Board Lock
Voltage Rating 250V
Color Green
Dielectric Material Polybutylene Terephthalate (PBT) , Glass Filled
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 302W2CS
Standard Package 30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349672-302W2CSXX56N40X
Ultra Librarian 3D Model Ultra Librarian 302W2CSXX56N40X CAD Model

Description

The 302W2CSXX56N40X is a D-sub connector assembly designed for power applications and manufactured by Conec and has a base product number of 302W2CS.

  • Positions: Two
  • Color: Green
  • Feature: Board Lock
  • Connector Type: Receptacle, Female Sockets and Male Pins
  • Contact Type: Power
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Package: Tray
  • Standard Package: 30
