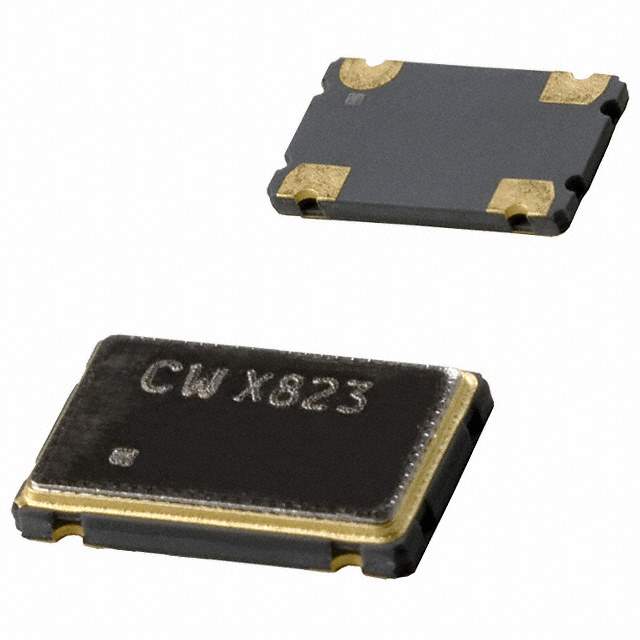

The CWX823-024.0M is a crystal oscillator manufactured by Connor-Winfield Corporation. Crystal oscillators are electronic circuits that produce a stable and accurate oscillating signal at a specific frequency. They are widely used as a timing reference in various electronic devices.

Applications:

• Microcontrollers
• Microprocessors
• Real-time clocks (RTCs)
• Frequency synthesizers
• Communication equipment
• GPS receivers

Features:

• High frequency stability
• Low phase noise
• Low power consumption
• Small form factor
• Surface mount technology (SMT)
• 24.0 MHz Output Frequency

Benefits:

• Provides a stable and accurate timing reference
• Ensures proper operation of electronic devices
• Reduces timing errors
• Extends battery life in portable devices
• Simplifies circuit design

Technical Specifications:

Key specifications for the CWX823-024.0M include:

• Frequency: 24.0 MHz
• Frequency Stability: Expressed in parts per million (ppm) over a specific temperature range; typically ±25 ppm or better.
• Operating Temperature Range: The range of temperatures over which the oscillator will maintain its specified performance; often from -40°C to +85°C.
• Supply Voltage: Typically 3.3V or 5V.
• Output Waveform: HCMOS, CMOS, or TTL.
• Aging: The change in frequency over time, usually specified in ppm per year.
• Package Type: Surface mount.

The CWX823-024.0M crystal oscillator provides a stable and accurate 24.0 MHz clock signal for a variety of electronic applications. Its high frequency stability, low phase noise, and low power consumption make it a suitable choice for demanding applications. Crystal oscillators are essential components in many electronic devices, providing the timing reference necessary for proper operation. This particular Connor-Winfield oscillator is likely used in applications where a precise and reliable 24.0 MHz clock signal is required.
