Same model may have multiple batches, images only for reference.

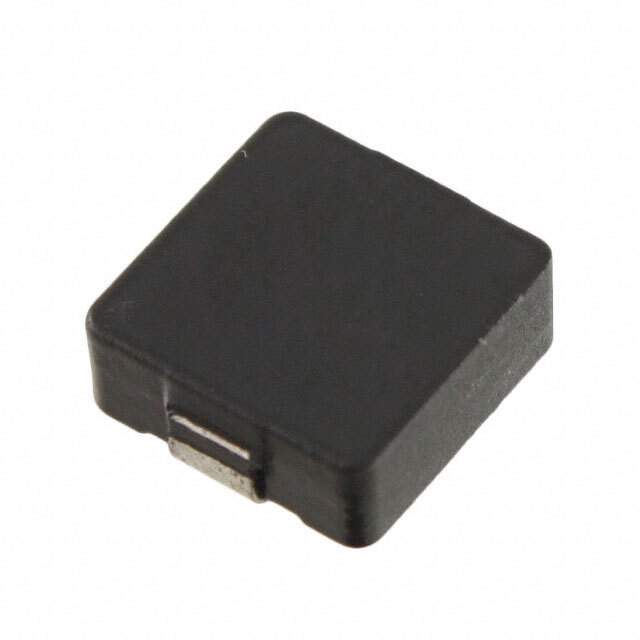

HCM1305-R68-R Real Image
Same model may have multiple batches, images only for reference.

HCM1305-R68-R

Part No HCM1305-R68-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description High Current Power Inductors | FIXED IND 680NH 34A 1.33 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton - Electronics Division
Packaging Reel
Type Wirewound
Material - Core Iron Powder
Inductance 680nH
Tolerance ±20%
Current Rating (Amps) 34A
Current - Saturation 54A
Shielding Shielded
DC Resistance (DCR) 1.33mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.524" L x 0.480" W (13.30mm x 12.20mm)
Height - Seated (Maximum) 0.197"
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1178972-HCM1305-R68-R
Manufacturer Homepage www.cooperbussmann.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HCM1305-R68-R CAD Model

Description

The Eaton - Electronics Division HCM1305-R68-R is a wirewound inductor with a shielded design.

  • Inductance: 680nH
  • Tolerance: ±20%
  • Core Material: iron powder
  • Maximum Current Saturation: 54A
  • Ideal for: use in circuits that require high power and low resistance
  • DC Resistance (DCR): 1.33mOhm max
  • Temperature Range: -55°C to 125°C
  • Package Type: nonstandard
  • Height Seated (Maximum): 0.197 inches
  • Current Rating (Amps): 34A
  • Inductance Frequency for Testing: 100kHz
