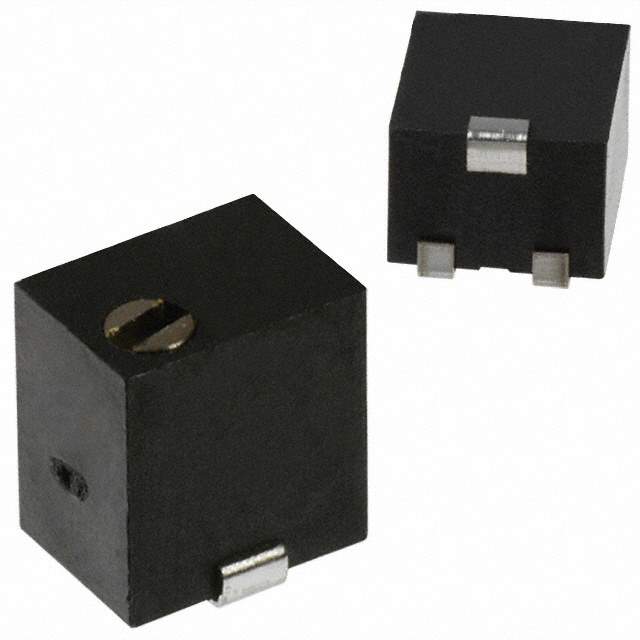

SM-42TW202 Real Image
Same model may have multiple batches, images only for reference.

SM-42TW202

Part No SM-42TW202
Manufacturer Copal Electronics Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 2K OHM 0.25W SMD / Res Cermet Trimmer 2K Ohm 10% 0.25W(1/4W) 11(Elec)Turns 1.5mm (4.8 X 3.9 X 5.3mm) J-Hook SMD T/R
Datasheet
SM-42TW202 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Copal Electronics Inc.
Series SM42
Packaging Reel package
Resistance (Ohms) 2k
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 11
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD
Termination Style J Lead
Dimension Square - 0.189" L x 0.138" W x 0.201" H (4.80mm x 3.50mm x 5.10mm)
Win Source Part Number 794558-SM-42TW202
Popularity Medium
Supply and Demand Status Limited
Family Name SM-42
Introduction Date September 26, 2005
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian SM-42TW202 CAD Model

Description

The Copal Electronics Inc. potentiometer is a variable resistor with a resistance of 2k ohms and a power rating of 0.25W.

  • Resistance: 2k ohms
  • Power Rating: 0.25W
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Turns: Eleven
  • Adjustment Type: Top
  • Resistive Material: Cermet
  • Dimensions: 0.189" L x 0.138" W x 0.201" H
  • Compliance: RoHS
  • Series: SM-42
  • Alternative Parts: SM4TW202, SM-4ETW202, 44WR2KT7, 45WR2KLFT7
  • Supply and Demand Status: Limited
