Same model may have multiple batches, images only for reference.

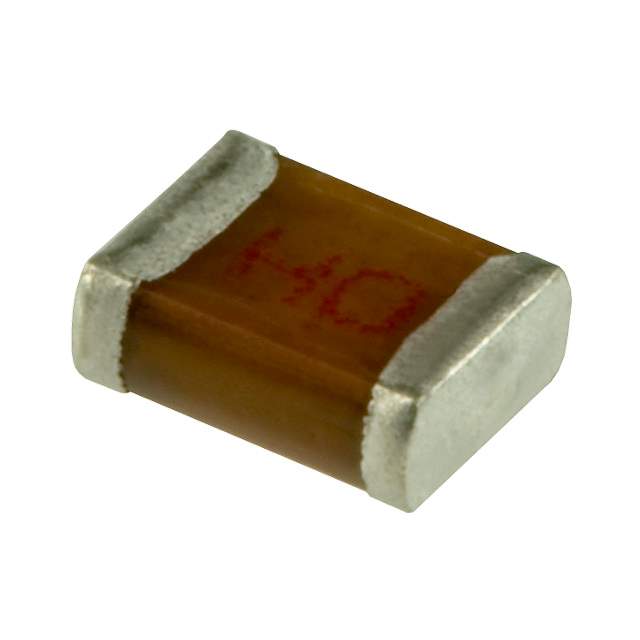

MC08EA220J-F Real Image
Same model may have multiple batches, images only for reference.

MC08EA220J-F

Part No MC08EA220J-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 22PF 5% 100V 0805  /  22 pF Mica Capacitor 100 V 0805 (2012 Metric)
Datasheet
MC08EA220J-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Mica and PTFE Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series MC
Package Bulk
Capacitance 22 pF
Tolerance ±5%
Voltage - Rated 100 V
Dielectric Material Mica
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Features RF, High Q, Low Loss
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.055" (1.40mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.29.0020
Other Names MC08EA220JF,338-1102
Standard Package 100
Win Source Part Number 1133089-MC08EA220J-F
Ultra Librarian 3D Model Ultra Librarian MC08EA220J-F CAD Model

Description

The MC08EA220J-F is a high-quality capacitor in the Mica and PTFE Capacitors category from Cornell Dubilier Electronics (CDE).

  • Category: Mica and PTFE Capacitors
  • Series: MC
  • Features: RF, high Q, and low loss
  • Capacitance: 22 pF
  • Voltage Rating: 100 V
  • Tolerance: ±5%
  • Height Seated: 0.055" (1.40mm)
  • Package: Bulk
  • Mounting Type: SMD (SMT)
  • Package/Case Size: 0805 (2012 Metric)
  • Temperature Range: -55°C to 125°C
