Same model may have multiple batches, images only for reference.

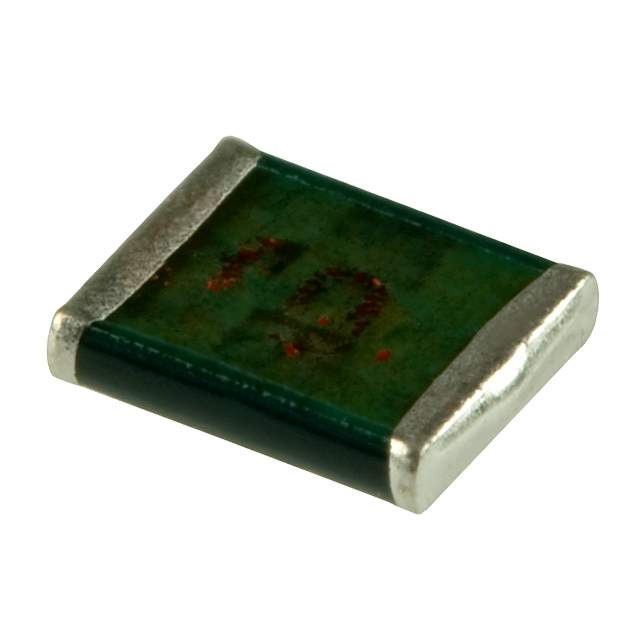

MC12FD560J-TF Real Image
Same model may have multiple batches, images only for reference.

MC12FD560J-TF

Part No MC12FD560J-TF
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 56PF 5% 500V 1210 / Cap Mica 56pF 500V 5% (3.2 X 2.5 X 2mm) SMD 125°C T/R
Datasheet
MC12FD560J-TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series MC
Packaging Reel package
Capacitance 56pF
Tolerance ±5%
Voltage Rating DC 500V
Dielectric Material Mica
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 1210
Features RF, High Q, Low Loss
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Win Source Part Number 777904-MC12FD560J-TF
Popularity Medium
Supply and Demand Status Limited
Family Name MC
Introduction Date March 14, 2002
ECCN EAR99
Country of Origin Mexico, United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian MC12FD560J-TF CAD Model

Description

The Cornell Dubilier Electronics (CDE) MC12FD560J-TF capacitor is a high-quality component that is part of the MC series. It is a medium popularity capacitor that has an estimated EOL date of 2027.

  • High Q and Low Loss Features: Yes
  • Suitable for RF Applications: Yes
  • Suitable for Coupling and Decoupling Applications: Yes
  • Series: MC
  • Estimated EOL Date: 2027
