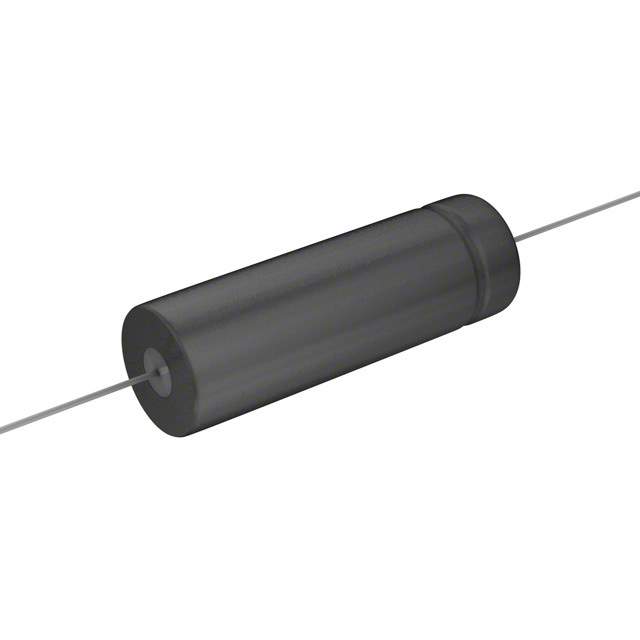

Same model may have multiple batches, images only for reference.

TC2530

Name: TC2530
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1205323
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	TC2530
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 3000UF 25V AXIAL / 3000 µF 25 V Aluminum Electrolytic Capacitors Axial, Can 70mOhm @ 120Hz 1000 Hrs @ 85°C
Datasheet	TC2530 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	TC
Package	Bulk
Product Status	Obsolete
Capacitance	3000 µF
Tolerance	-10%, +75%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	70mOhm @ 120Hz
Lifetime @ Temp.	1000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	3.108 A @ 120 Hz
Ripple Current @ High Frequency	3.54 A @ 2.4 kHz
Dimension	0.875" Dia x 2.625" L (22.22mm x 66.68mm)
Mounting Type	Through Hole
Package / Case	Axial, Can
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Standard Package	1
Win Source Part Number	1205323-TC2530
Ultra Librarian 3D Model	Ultra Librarian TC2530 CAD Model

Alternative Products

Description

This electronic component is an aluminum electrolytic capacitor manufactured by Cornell Dubilier Electronics (CDE).

Capacitance: 3000 μF
Voltage Rating: 25 V
Tolerance: -10%, +75%
ESR: 70mOhm @ 120Hz
Lifetime @ Temperature: 1000 Hrs @ 85°C
Polarization: Polarized
Package: Axial, Can
Operating Temperature: -40°C to 85°C
Category: Capacitors
Ripple Current @ Low Frequency: 3.108 A @ 120 Hz
Ripple Current @ High Frequency: 3.54 A @ 2.4 kHz
MSL Level: 1 (Unlimited)
RoHS Status: Non-Compliant
