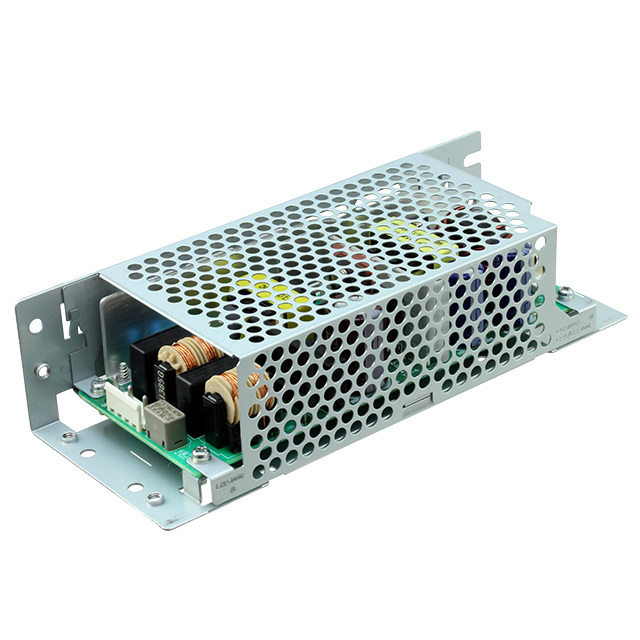

LEB100F-0536-SN Cosel USA, Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

LEB100F-0536-SN

Part No LEB100F-0536-SN
Manufacturer Cosel USA, Inc.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 5V 36V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Type Enclosed
Number of Outputs 2
Voltage - Input 85 ~ 264 VAC
Voltage - Output 1 5V
Voltage - Output 2 36V
Current - Output 1 5 A
Current - Output 2 4.7 A
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 80%
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Chassis Mount
Size / Dimension 8.74" L x 2.95" W x 1.38" H (222.0mm x 74.9mm x 35.1mm)
Approval Agency CE, cURus, TUV
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1544060-LEB100F-0536-SN
Ultra Librarian 3D Model Ultra Librarian LEB100F-0536-SN CAD Model

Description

N
