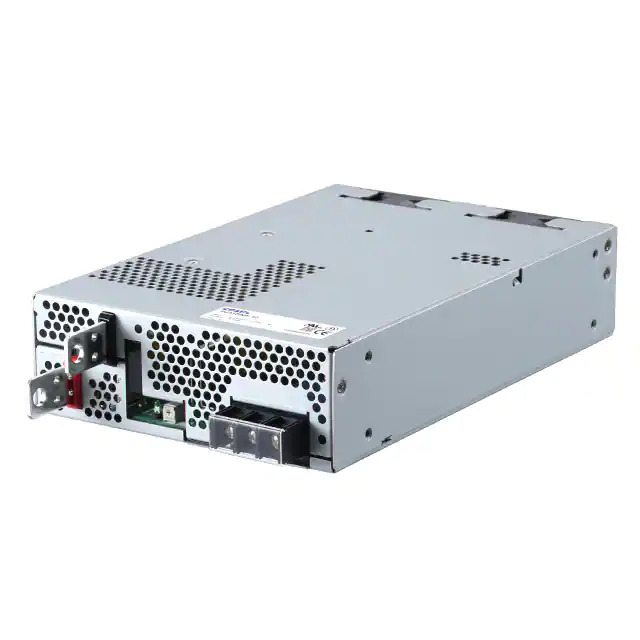

PJA1500F-24 Cosel USA, Inc.
Same model may have multiple batches, images only for reference.

PJA1500F-24

Part No PJA1500F-24
Manufacturer Cosel USA, Inc.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 24V 1500W / Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr Cosel USA, Inc.
Series PJA (1500W)
Package Box
Product Status Active
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC
Voltage - Output 1 24V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Voltage - Output 6 -
Current - Output 1 64 A
Power (Watts) 1500W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 88%
Temperature Range - Operating -20°C ~ 70°C (With Derating)
Features Universal Input
Mounting Type Chassis Mount
Size / Dimension 10.55" L x 7.01" W x 2.40" H (268.0mm x 178.1mm x 61.0mm)
Approval Agency CE, CSA, cURus, DEMKO, UL
Standard Number 508; 60950-1; 62368-1
Minimum Load Required -
Base Product Number PJA1500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9540
California Prop 65 Warning Information
Win Source Part Number 1355428-PJA1500F-24
Ultra Librarian 3D Model Ultra Librarian PJA1500F-24 CAD Model

Description

The Cosel PJA1500F-24 is a 1500W enclosed AC/DC converter designed for power supply applications.

  • Input Voltage: 85-264 VAC (Universal)
  • Output: 24V
  • Output Current: 64A (Max)
  • Efficiency: 88%
  • Series: PJA
  • Applications: ITE (Commercial)
  • Mounting: Chassis Mount
  • Size: 10.55" L x 7.01" W x 2.40" H
  • Approvals: CE, CSA, cURus, DEMKO, and UL
