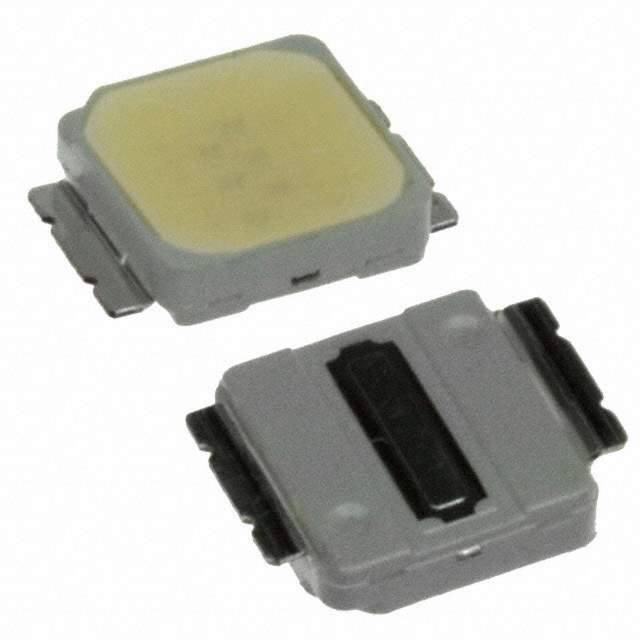

MX6AWT-A1-0000-0009E8 Real Image
Same model may have multiple batches, images only for reference.

MX6AWT-A1-0000-0009E8

Part No MX6AWT-A1-0000-0009E8
Manufacturer Cree Inc.
Catalog LED Lighting - White
Description LED XLAMP WARM WHITE 2700K 2SMD
Datasheet
MX6AWT-A1-0000-0009E8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Packaging Reel - TR
Status Active
Color White, Warm
CCT (K) 2700K
Flux @ 25°C, Current - Test 84 lm (81 lm to 87 lm)
Current - Test 300mA
Forward Voltage 3.3V
Lumens/Watt @ Current - Test 85 lm/W
CRI (Color Rendering Index) 80 (Typ)
Current - Max 1A
Viewing Angle 120°
Mounting SMD (SMT)
Case / Package SMD
Height - Seated (Max) 0.058" (1.48mm)
Thermal Resistance of Package 5°C/W
Win Source Part Number 208970-MX6AWT-A1-0000-0009E8
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MX6AWT-A1-0000-0009E8 CAD Model

Description

The Cree Inc. MX6AWT-A1-0000-0009E8 is an optoelectronic component that comes in white and warm color.

  • Viewing Angle: 120 degrees
  • Forward Voltage: 3.3V
  • Current Test: 300mA
  • CCT (K): 2700K
  • Flux @ 25°C, current test: 84 lm (81 lm to 87 lm)
  • Lumens/Watt @ current test: 85 lm/W
  • CRI (Color Rendering Index): 80 (Typ)
  • Thermal Resistance of the Package: 5°C/W
  • Mounting: mounted using SMD (SMT) technology
  • Popularity: a medium popularity segment.
