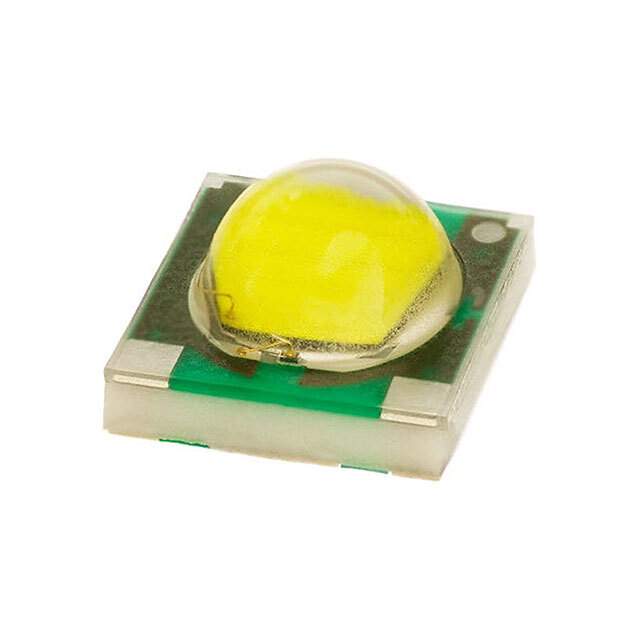

XPGWHT-01-0000-00FC1

Part No XPGWHT-01-0000-00FC1
Manufacturer Cree Inc.
Catalog LED Lighting - White
Description LED XLAMP COOL WHITE 5000K 2SMD
Datasheet
XPGWHT-01-0000-00FC1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Packaging Reel - TR
Status Active
Color White, Cool
CCT (K) 5000K
Flux @ 25°C, Current - Test 126 lm (122 lm to 130 lm)
Current - Test 350mA
Forward Voltage 2.9V
Lumens/Watt @ Current - Test 124 lm/W
CRI (Color Rendering Index) 70 (Typ)
Current - Max 1.5A
Viewing Angle 125°
Mounting SMD (SMT)
Height - Seated (Max) 0.084" (2.13mm)
Thermal Resistance of Package 4°C/W
Win Source Part Number 043987-XPGWHT-01-0000-00FC1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XPGWHT-01-0000-00FC1 CAD Model

Description

The Cree XPGWHT-01-0000-00FC1 is a white or cool colored LED that has a packaging of reel - TR.

  • Maximum Current: It has a maximum current of 1.5A.
  • Forward Voltage: and a forward voltage of 2.9V.
  • Viewing Angle: The viewing angle is 125 degrees.
  • CCT: and it has a CCT of 5000K.
  • CRI: with a CRI of 70.
  • Flux: @ the test current of 350mA, it produces a flux of 126 lm.
  • Lumens/Watt Ratio: with a lumens/watt ratio of 124 lm/W.
  • Thermal Resistance: The LED has a thermal resistance of 4 degrees Celsius per watt.
  • Category: and is classified under optoelectronics category.
  • Height: Its height is 0.084 inches.
  • Mounting: and it is mounted using SMD.
