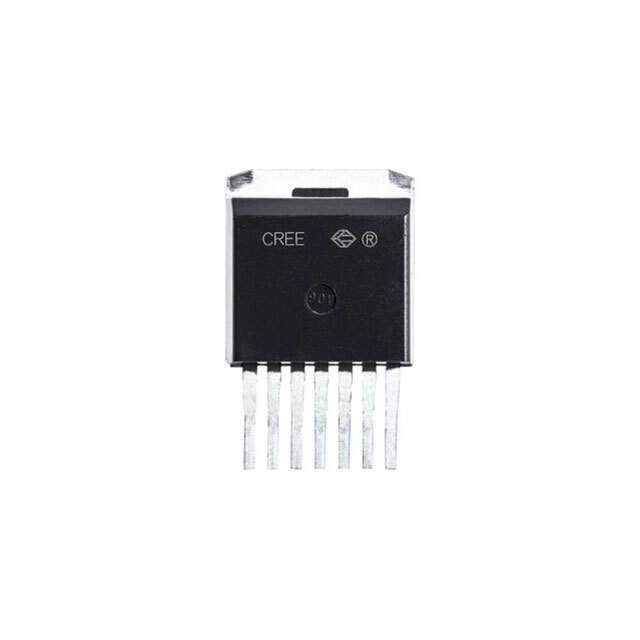

Same model may have multiple batches, images only for reference.

C3M0032120J1

Name: C3M0032120J1
Brand: Cree/Wolfspeed
SKU: 1324564
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	C3M0032120J1
Manufacturer	Cree/Wolfspeed
Catalog	Transistors - FETs, MOSFETs - RF
Description	1200V 32MOHM SIC MOSFET / N-Channel 1200 V 68A (Tc) 277W (Tc) Surface Mount TO-263-7
Datasheet	C3M0032120J1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer	Wolfspeed, Inc.
Packaging	Tube
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	68A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	43mOhm @ 41.4A, 15V
Vgs(th) (Max) @ Id	3.6V @ 11.5mA
Gate Charge (Qg) (Max) @ Vgs	111 nC @ 15 V
Vgs (Max)	+15V, -4V
Input Capacitance (Ciss) (Max) @ Vds	3424 pF @ 1000 V
Power Dissipation (Max)	277W (Tc)
Temperature Range - Operating	-40°C ~ 150°C (TJ)
Mounting	Surface Mount
Supplier Device Package	TO-263-7
Case / Package	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Base Product Number	C3M0032120
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN	EAR99
HTSUS	8541.29.0095
Other Part Number	1697-C3M0032120J1TR,-3312-C3M0032120J1CT,-3312-C3M0032120J1CT-ND,-3312-C3M0032120J1TR-ND,1697-C3M0032120J1DKR,-3312-C3M0032120J1DKR-ND,-3312-C3M0032120J1,-3312-C3M0032120J1DKRINACTIVE,1697-C3M0032120J1CT-ND,1697-C3M0032120J1DKR-ND,1697-C3M0032120J1TR-ND,1697-C3M0032120J1CT,1697-C3M0032120J1,-3312-C3M0032120J1DKR,-3312-C3M0032120J1TR
Standard Package	50
Win Source Part Number	1324564-C3M0032120J1
Ultra Librarian 3D Model	Ultra Librarian C3M0032120J1 CAD Model

Alternative Products

Description

The Wolfspeed, Inc. 1324564-C3M0032120J1 is a SiCFET (Silicon Carbide) N-channel transistor with a drain to source voltage (Vdss) of 1200V.

Continuous Drain Current (Id) @ 25°C: 68A (Tc)
Rds On (Max) @ Id, Vgs: 43mOhm @ 41.4A, 15V
Vgs(th) (Max) @ Id: 3.6V @ 11.5mA
Power Dissipation (Max): 277W (Tc)
Supplier Device Package: TO-263-7
