Same model may have multiple batches, images only for reference.

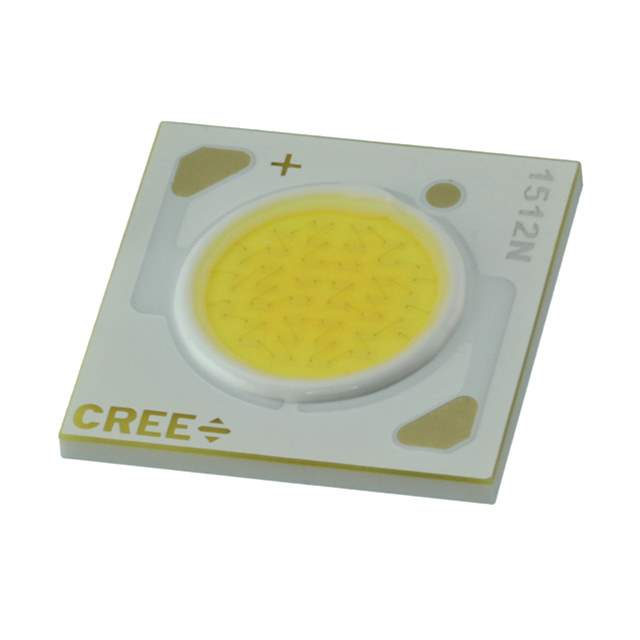

CXA1512-0000-000N00K430F Real Image
Same model may have multiple batches, images only for reference.

CXA1512-0000-000N00K430F

Part No CXA1512-0000-000N00K430F
Manufacturer CreeLED, Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED CXA1512 8.9MM WHT / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
Datasheet
CXA1512-0000-000N00K430F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr CreeLED, Inc.
Series XLamp® CXA1512
Package Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 4-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 1335lm (1290lm ~ 1380lm)
Current - Test 350mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 37V
Lumens/Watt @ Current - Test 103 lm/W
Current - Max 600mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 15.85mm L x 15.85mm W
Height 1.70mm
Light Emitting Surface (LES) 8.90mm Dia
Lens Type Flat
Base Product Number CXA1512
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 100
Win Source Part Number 982176-CXA1512-0000-000N00K430F
Ultra Librarian 3D Model Ultra Librarian CXA1512-0000-000N00K430F CAD Model

Description

The CXA1512-0000-000N00K430F is a chip on board (COB) electronic component manufactured by CreeLED, Inc.

  • Series: XLamp® CXA1512
  • Shape: Square
  • Viewing Angle: 115 degrees
  • Color: White and Warm
  • Lumens/Watt Ratio: 103 lm/W
  • CCT: 3000K 4-Step MacAdam Ellipse
  • CRI: 80
