Same model may have multiple batches, images only for reference.

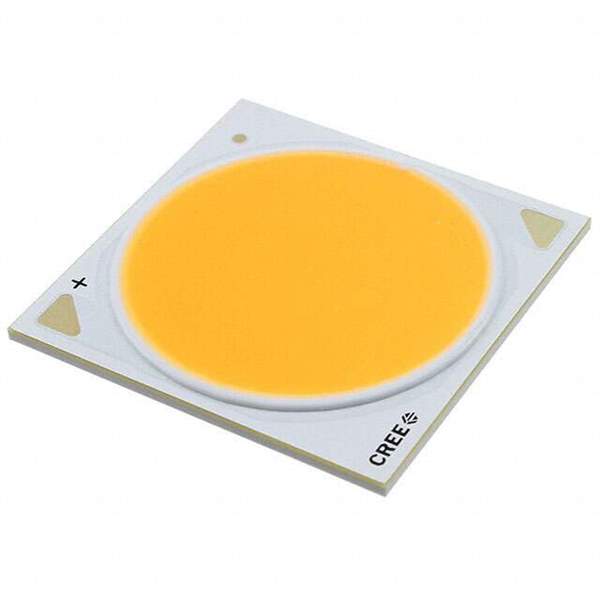

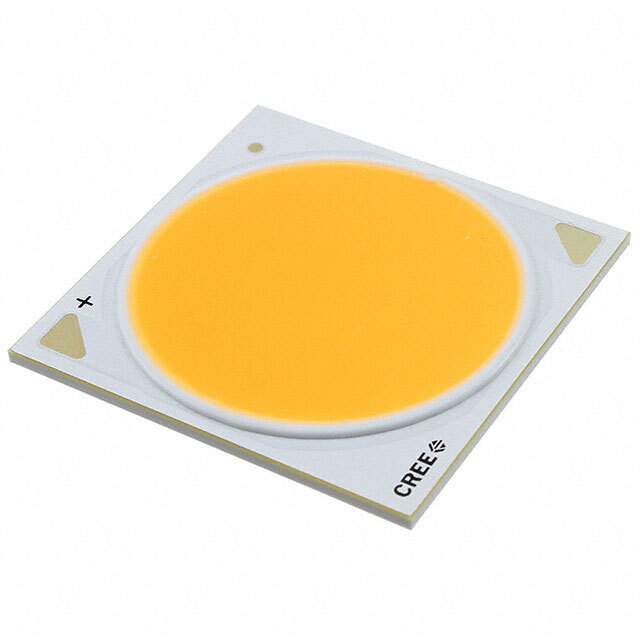

CXA3590-0000-000R00AD27F Real Image
Same model may have multiple batches, images only for reference.

CXA3590-0000-000R00AD27F

Part No CXA3590-0000-000R00AD27F
Manufacturer CreeLED, Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA3590 WARM WHT SQUARE / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
Datasheet
CXA3590-0000-000R00AD27F Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr CreeLED, Inc.
Series XLamp® CXA3590
Package Tray
Product Status Obsolete
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2700K 4-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 9250lm (9000lm ~ 9500lm)
Current - Test 1.2A
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 77V
Lumens/Watt @ Current - Test 100 lm/W
Current - Max 1.8A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 34.85mm L x 34.85mm W
Height 1.70mm
Light Emitting Surface (LES) 30.00mm Dia
Lens Type Flat
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 50
Win Source Part Number 1010966-CXA3590-0000-000R00AD27F
Ultra Librarian 3D Model Ultra Librarian CXA3590-0000-000R00AD27F CAD Model

Description

The CreeLED, Inc. CXA3590-0000-000R00AD27F is a chip on board (COB) type LED designed for LED lighting - COBs, engines, modules, strips CreeLED, Inc..

  • Series: XLamp® CXA3590
  • Configuration: Square
  • LED Color: White and Warm
  • Viewing Angle: 115°
  • Voltage Forward (Vf): 77V @ 1.8A
  • Luminous Flux: 9250lm (9000lm ~ 9500lm) @ current/temperature
  • CCT: 2700K 4-Step MacAdam Ellipse
  • CRI: 80
  • Light Emitting Surface (LES): 30.00mm diameter
  • Height: 1.70mm
  • Temperature Range: 85°C
  • Rated Current: 1.8A
  • REACH: Unaffected
  • ECCN: EAR99
  • Status: Obsolete
  • Package: Tray package of 50
