Same model may have multiple batches, images only for reference.

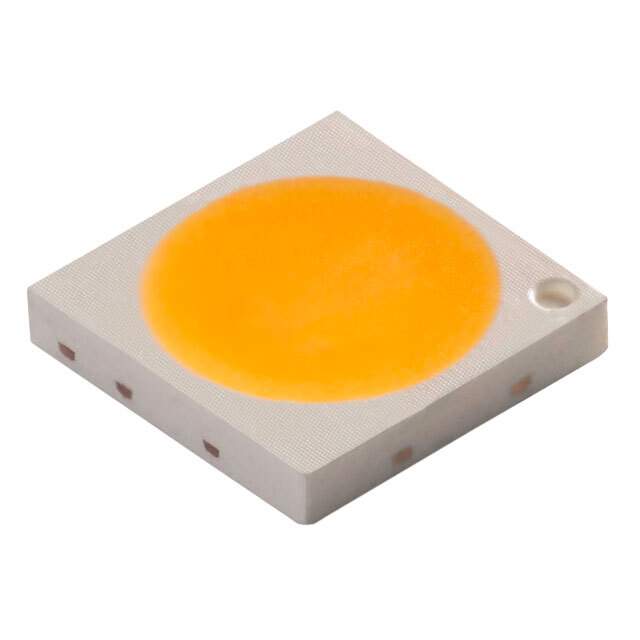

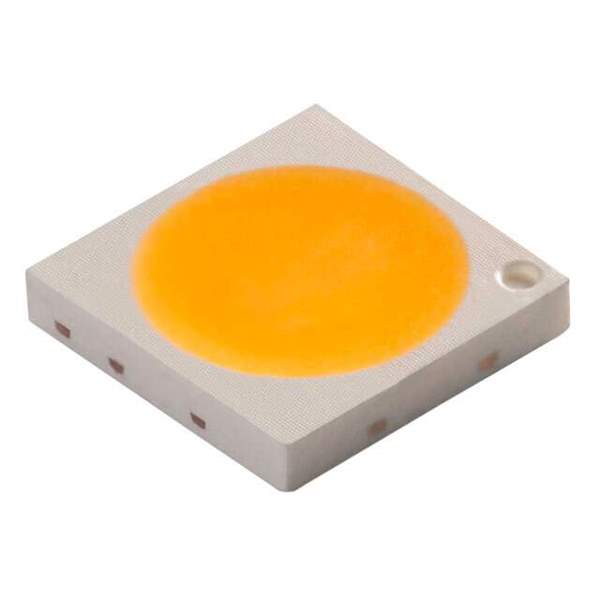

JK3030AWT-P-B65EA0000-N0000001 Real Image
Same model may have multiple batches, images only for reference.

JK3030AWT-P-B65EA0000-N0000001

Part No JK3030AWT-P-B65EA0000-N0000001
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description CREE J SERIES JK3030 LIGHT EMITT / LED Lighting series White, Cool 6500K 3.2V 350mA 120° 1212 (3030 Metric)
Datasheet
JK3030AWT-P-B65EA0000-N0000001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr CreeLED, Inc.
Series J
Package Tape & Reel (TR)
Color White, Cool
CCT (K) 6500K
Flux @ 25°C, Current - Test 156lm (Typ)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 3.2V
Lumens/Watt @ Current - Test 139 lm/W
CRI (Color Rendering Index) 70
Current - Max 400mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 1212 (3030 Metric)
Supplier Device Package SMD
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.028" (0.72mm)
Thermal Resistance of Package 18°C/W
Base Product Number JK3030AWT
ECCN EAR99
HTSUS 8541.41.0000
Other Names JK3030AWT-00-0000-000A0BL465E,2138-JK3030AWT-P-B65EA0000-N0000001TR,JK3030AWT-00-0000-000A0BL465E-ND
Standard Package 5,000
Win Source Part Number 968027-JK3030AWT-P-B65EA0000-N0000001
Ultra Librarian 3D Model Ultra Librarian JK3030AWT-P-B65EA0000-N0000001 CAD Model

Description

The CreeLED, Inc. JK3030AWT-P-B65EA0000-N0000001 is a white, cool LED lighting component that can be mounted using SMD (SMT) technology.

  • Color: White, Cool
  • Mounting Type: SMD (SMT)
  • Maximum Forward Voltage: 3.2V
  • Maximum Current: 400mA
  • Viewing Angle: 120°
  • Thermal Resistance: 18°C/W
  • Operating Temperature Range: -40°C to 85°C
