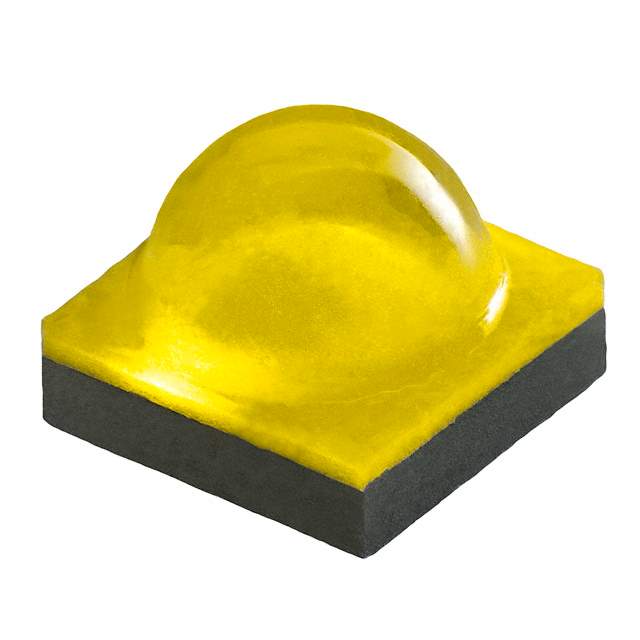

XBDAWT-00-0000-000000EE3 Real Image
Same model may have multiple batches, images only for reference.

XBDAWT-00-0000-000000EE3

Part No XBDAWT-00-0000-000000EE3
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description LED XLAMP COOL WHITE 5000K 2SMD / LED Lighting series White, Cool 5000K 2.9V 350mA 115° 1010 (2525 Metric)
Datasheet
XBDAWT-00-0000-000000EE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr CreeLED, Inc.
Series XLamp® XB-D
Package Tape & Reel
Color White, Cool
CCT (K) 5000K
Flux @ 85°C, Current - Test 118lm (114lm ~ 122lm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.9V
Lumens/Watt @ Current - Test 116 lm/W
Current - Max 1A
Viewing Angle 115°
Mounting SMD (SMT)
Package / Case 1010 (2525 Metric)
Supplier Device Package SMD
Dimension 0.096" L x 0.096" W (2.45mm x 2.45mm)
Height - Seated (Max) 0.078" (1.97mm)
Thermal Resistance of Package 6.5°C/W
Base Product Number XBDAWT
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names XBDAWT-00-0000-000000EE3CT,XBDAWT-00-0000-000000EE3DKR,XBDAWT-00-0000-000000EE3TR,XBDAWT-00-0000-000000EE3-ND
Standard Package 1,000
Win Source Part Number 1105158-XBDAWT-00-0000-000000EE3
Ultra Librarian 3D Model Ultra Librarian XBDAWT-00-0000-000000EE3 CAD Model

Description

The XLamp® XB-D is a white, cool LED lighting component manufactured by CreeLED, Inc.

  • Win Source Part Number: 1105158-XBDAWT-00-0000-000000EE3
  • Maximum Current: 1A
  • Viewing Angle: 115°
  • Voltage-Forward (Vf) @ Typical: 2.9V
  • Current Test: 350mA
  • Color Temperature: 5000K
  • Thermal Resistance: 6.5°C/W
  • Height: 0.078" (1.97mm)
  • Package: tape and reel
  • Standard Package: 1,000 units
  • Mounting: SMD (SMT)
  • Flux @ 85°C, Current Test: 118lm (114lm ~ 122lm)
  • Lumens/Watt @ Current Test: 116 lm/W
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • REACH: unaffected
