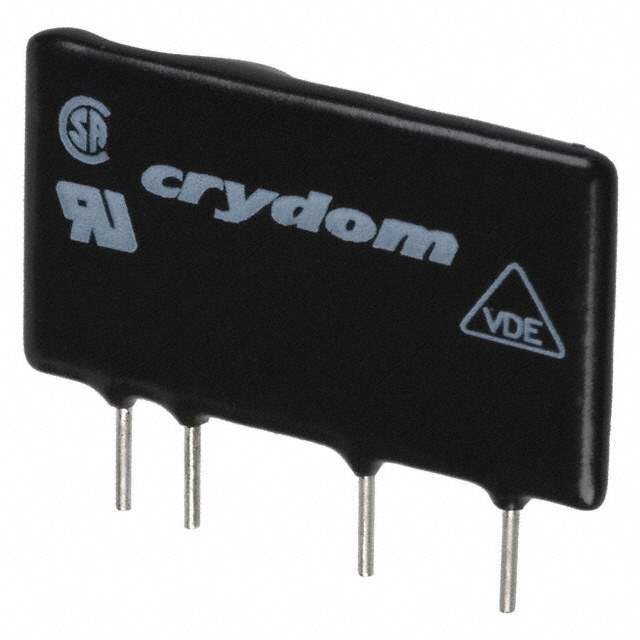

CX480D5 Real Image
Same model may have multiple batches, images only for reference.

CX480D5

Part No CX480D5
Manufacturer Crydom Co.
Catalog Solid State Relays
Description RELAY SSR 5A 480VAC SIP / Solid State Relay 15mA 15V DC-IN 5A 660V AC-OUT 4-Pin SIP
Datasheet
CX480D5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Crydom Co.
Series CX
Packaging Bulk
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Load Current 5A
Voltage - Input 4 ~ 15VDC
Voltage - Load 48 ~ 660 V
Mounting Style Through Hole
Termination Style PC Pin
Package 4-SIP
Manufacturer Package 4-SIP
Relay Type Relay
Win Source Part Number 771948-CX480D5
Popularity Medium
Supply and Demand Status Limited
Family Name CX480D5
Introduction Date January 24, 2002
ECCN EAR99
Country of Origin Mexico
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian CX480D5 CAD Model

Description

Crydom Co.'s CX480D5 series relay is a high-quality, reliable choice for a variety of applications.

  • Load Current: 5A
  • Voltage Range: 48-660V
  • Package: 4-SIP
  • Mounting Type: Through Hole
  • Estimated EOL Date: 2025
