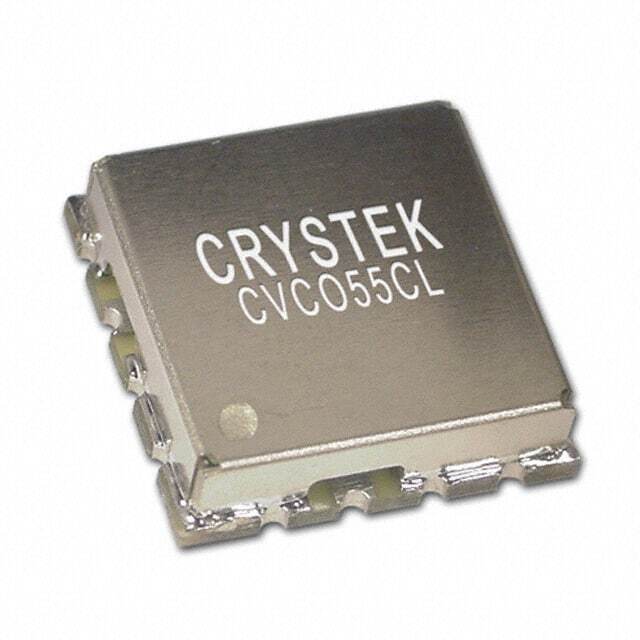

Same model may have multiple batches, images only for reference.
CVCO55CL-1360-1380 Crystek Corporation
Same model may have multiple batches, images only for reference.

CVCO55CL-1360-1380

Part No CVCO55CL-1360-1380
Manufacturer Crystek Corporation
Catalog Oscillators
Description VCO 1370MHZ 0.3-4.7V 12.7X12.7MM / 1370MHz Center Frequency 0.3 V ~ 4.7 V Voltage Controlled Oscillator 6 ±2 dBm -15 2nd Harmonic Typ (dBc)
Datasheet
CVCO55CL-1360-1380 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>VCOs (Voltage Controlled Oscillators)
Mfr Crystek Corporation
Series CVCO55
Package Strip
Frequency Range 1360 ~ 1380MHz
Frequency - Center 1370MHz
Voltage - Supply 8V
Tuning Voltage (VDC) 0.3 V ~ 4.7 V
2nd Harmonic, Typ (dBc) -15
Icc Max 30mA
Pushing (MHz/V) 3
Power (dBm) 6 ±2
Phase Noise Typ (dBc/Hz) -105
Temperature Range - Operating -40°C ~ 85°C
Package / Case 16-QFN, Variant
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height 0.150" (3.81mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 744-1202
Standard Package 5
Win Source Part Number 1111873-CVCO55CL-1360-1380
Ultra Librarian 3D Model Ultra Librarian CVCO55CL-1360-1380 CAD Model

Description

The CVCO55CL-1360-1380 is a voltage controlled oscillator (VCO) that falls under the category of crystals, oscillators, and resonators. This product is from the CVCO55 series and has a strip package.

  • Series: CVCO55
  • Package: Strip
  • Standard Package: 5
  • Frequency Range: 1360 ~ 1380MHz
  • Frequency Center: 1370MHz
  • Tuning Voltage: 0.3 V to 4.7 V
  • Icc Max: 30mA
  • Power Output: 6 ±2 dBm
  • Phase Noise Typ (dBc/Hz): -105
  • Voltage Supply: 8V
  • Package/Case: 16-QFN, Variant
  • Operating Temperature Range: -40°C to 85°C
  • Dimension: 0.500" L x 0.500" W (12.70mm x 12.70mm)
  • Pushing (MHz/V): 3
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8542.39.0001
  • Manufacturer: Crystek Corporation
