Same model may have multiple batches, images only for reference.

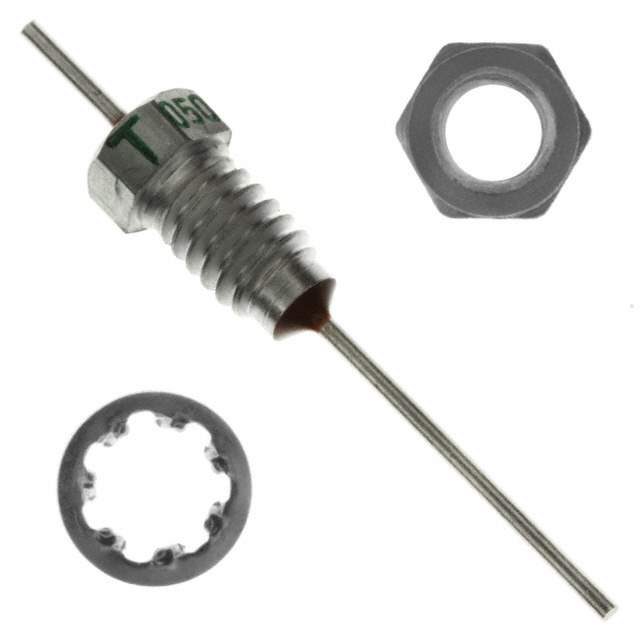

4201-050LF Real Image
Same model may have multiple batches, images only for reference.

4201-050LF

Part No 4201-050LF
Manufacturer CTS Electrocomponents
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 5500PF CHASSIS
Datasheet
4201-050LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Tusonix a Subsidiary of CTS Electronic Components
Packaging Bulk
Status Active
Type Low Pass
Filter Order 3rd
Technology LC (Pi)
Number of Channels 1
Attenuation Value 55dB @ 100MHz
Current 10A
Values C = 5500pF
ESD Protection No
Temperature Range - Operating -55°C to 125°C
Applications Data Lines for Mobile Devices
Voltage Rating 100V
Mounting Chassis Mount
Dimension 0.187" Dia x 0.359" L (4.75mm x 9.12mm)
Win Source Part Number 1005485-4201-050LF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 4201-050LF CAD Model

Description

The Tusonix a Subsidiary of CTS Electronic Components 1005485-4201-050LF low pass filter is a high-quality, versatile filter that is ideal for use in a wide range of electronic devices.

  • Voltage Rating: 100V
  • Current Rating: 10A
  • Application: Data lines for mobile devices
  • Center/Cutoff Frequency: -
  • Attenuation: 55dB @ 100MHz
  • Filter Order: 3rd order LC (Pi)
  • Values: C = 5500pF
  • Temperature Range: -55 degrees Celsius to 125 degrees Celsius
  • Materials: High-quality materials
  • Applications: Filtering
