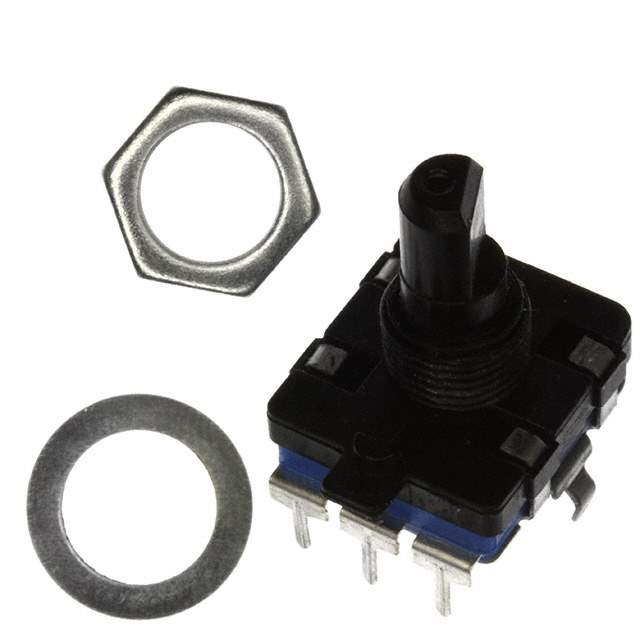

ACZ16NBR1E-15FD1-24C Real Image
Same model may have multiple batches, images only for reference.

ACZ16NBR1E-15FD1-24C

Part No ACZ16NBR1E-15FD1-24C
Manufacturer CUI Inc.
Catalog Encoders
Description ROTARY ENCODER INCREMENT 24PPR  /  Rotary Encoder Incremental 24 Quadrature (Incremental) Vertical
Datasheet
ACZ16NBR1E-15FD1-24C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Encoders
Mfr CUI Devices
Series ACZ16
Package Box
Encoder Type Incremental
Output Type Quadrature (Incremental)
Pulses per Revolution 24
Voltage - Supply 5V
Actuator Type 6mm Dia Flatted End
Detent Yes
Built in Switch No
Mounting Type Panel, PCB Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 100K
Base Product Number ACZ16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Other Names ACZ16NBR1E15FD124C,102-1785,074-0656R
Standard Package 60
Win Source Part Number 998768-ACZ16NBR1E-15FD1-24C
Ultra Librarian 3D Model Ultra Librarian ACZ16NBR1E-15FD1-24C CAD Model

Description

The ACZ16NBR1E-15FD1-24C is an incremental encoder from CUI Devices.

  • Orientation: Vertical
  • Actuator Type: 6mm dia flatted end
  • Output Type: Quadrature (incremental)
  • Pulses per Revolution: 24
  • Detent: Yes
  • Rotational Life: 100K cycles minimum
  • Voltage Rating: 5V
  • Mounting Type: Panel or PCB through hole
  • ECCN: EAR99
  • REACH: Unaffected
  • Package: Box
  • Standard Package: 60
  • Application: Sensors and transducers
