Same model may have multiple batches, images only for reference.

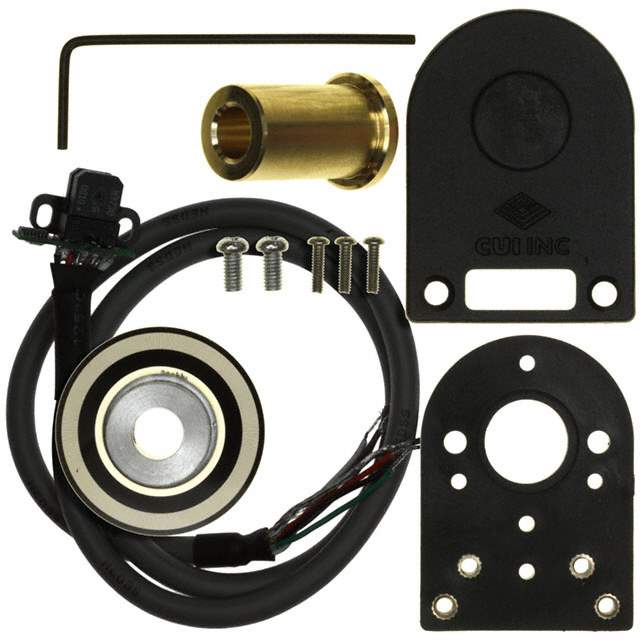

AME-500D-600K Real Image
Same model may have multiple batches, images only for reference.

AME-500D-600K

Part No AME-500D-600K
Manufacturer CUI Inc.
Catalog Encoders
Description ENCODER OPT 2CHAN 500PPR 5VDC
Datasheet
AME-500D-600K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer CUI Inc.
Status Obsolete(EOL)
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 500
Supply Voltage - Operating 5V
Actuator Type 6mm Open Center
Detent No
Built in Switch No
Mounting Chassis Mount, Motors
Orientation Right Angle
Termination Style Cable Leads
Win Source Part Number 134601-AME-500D-600K
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AME-500D-600K CAD Model

Description

Features and Benefits

  • High-frequency operation reducing size and cost of external components.
  • Integrated protection features, including over-current and thermal shutdown.
  • Low electromagnetic interference (EMI) characteristics.

Applications

  • Telecommunications Hardware
  • Power Management Circuits
  • Instrumentation and Measurement Devices

The AME-500D-600K offers an effective solution for overcoming space and power constraints in advanced electronic applications, ensuring robust power management in critical settings.
