Same model may have multiple batches, images only for reference.

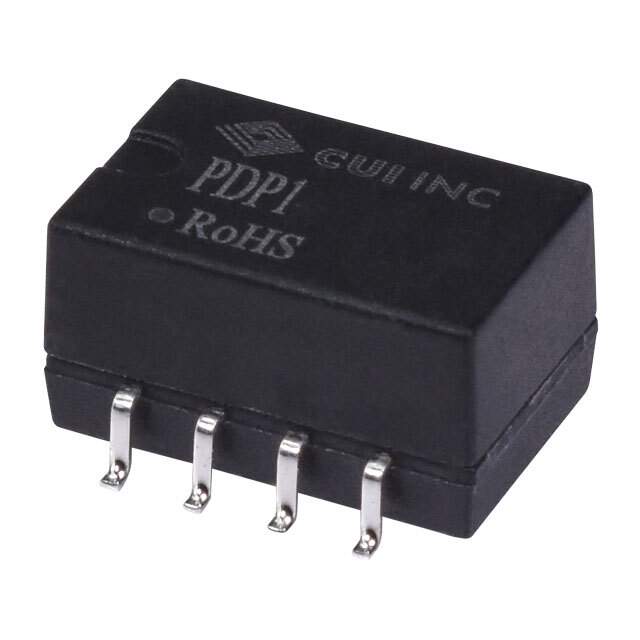

PDP1-S5-S5-M-TR Real Image
Same model may have multiple batches, images only for reference.

PDP1-S5-S5-M-TR

Part No PDP1-S5-S5-M-TR
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet
PDP1-S5-S5-M-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr CUI Inc.
Series PDP1-M (1W)
Package Tape & Reel
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 82%
Mounting Type Surface Mount
Package / Case 8-SMD Module
Size / Dimension 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
Approval Agency CB Scheme, EN, IEC, UL
Standard Number 55024; 55032 Class A; 62368-1
Base Product Number PDP1-S5
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1338833-PDP1-S5-S5-M-TR
Ultra Librarian 3D Model Ultra Librarian PDP1-S5-S5-M-TR CAD Model

Description

The PDP1-M (1W) series isolated module DC-DC converter from CUI Inc. is a high-performance power supply for use in ITE (Commercial) applications.

  • Application: ITE (Commercial)
  • Mounting Type: Surface Mount
  • Dimensions: 0.52" L x 0.33" W x 0.29" H
  • Power Rating: 1 W
  • Voltage Isolation: 1.5 kV
  • Efficiency: 82%
  • Output Current: 200mA
  • Input Voltage: 4.5V to 5.5V
  • Output Voltage: 5V
  • Approvals: CB Scheme, EN, IEC, UL
  • Standards: 55024, 55032 Class A, 62368-1
