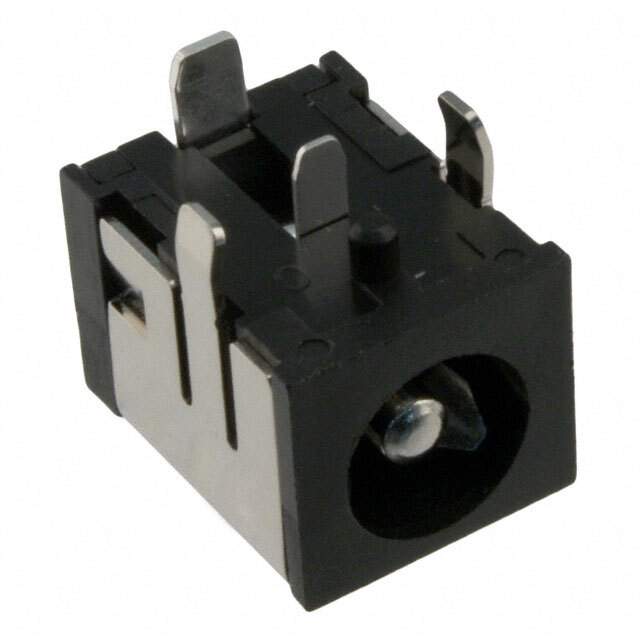

PJ-063BH

Name: PJ-063BH
Brand: CUI Inc.
SKU: 1334318
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PJ-063BH
Manufacturer	CUI Inc.
Catalog	Barrel - Power Connectors
Description	CONN POWER JACK 2.5X5.5MM / Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
Datasheet	PJ-063BH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Barrel Connectors>Power Connectors
Manufacturer	CUI Devices
Packaging	Bag
Connector Type	Jack
Gender	Male
Industry Recognized Mating Diameter	2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter	0.098" (2.50mm ID), 0.256" (6.50mm OD)
Number of Positions/Contacts	2 Conductors, 2 Contacts
Internal Switch(s)	Does Not Contain Switch
Mounting	Through Hole, Right Angle
Termination	Kinked Pin
Shielding	Shielded
Features	Board Guide
Voltage - Rated	24VDC
Current Rating (Amps)	8 A
Mating Length/Depth	0.348" (8.85mm)
Material Flammability Rating	UL94 V-0
Contact Material - Plating	Silver
Temperature Range - Operating	-25°C ~ 85°C
Housing Material	Polybutylene Terephthalate (PBT)
Contact Material	Brass, Copper Alloy
Body Color	Black
Base Product Number	PJ-063
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	045-1400R,CP-063BH,PJ-063BH-ND,PJ063BH
Standard Package	500
Win Source Part Number	1334318-PJ-063BH
Ultra Librarian 3D Model	Ultra Librarian PJ-063BH CAD Model

Alternative Products

Description

The CUI Devices PJ-063BH is a power connector that comes with a through-hole, right angle mounting style.

Mounting Style: Through-Hole, Right Angle
Gender: Male
ID: 2.50mm (0.098")
OD: 5.50mm (0.217")
Current Rating: 8 A
Voltage: Up to 24VDC
Internal Switches: None
Shielded: Yes
Housing Material: Polybutylene Terephthalate (PBT)
Material Flammability Rating: UL94 V-0
Color: Black
Standard Package: 500
Features: Board Guide, Kinked Pin Termination
