Same model may have multiple batches, images only for reference.

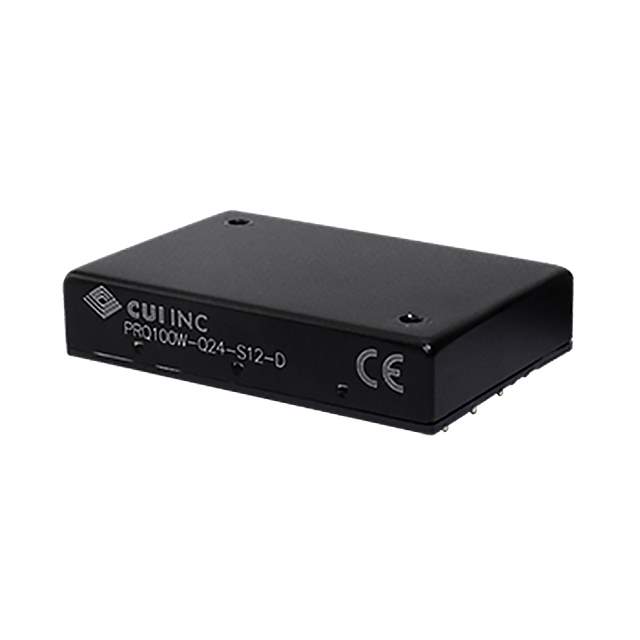

PRQ100W-Q24-S12-D Real Image
Same model may have multiple batches, images only for reference.

PRQ100W-Q24-S12-D

Part No PRQ100W-Q24-S12-D
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 100W / Isolated Module DC DC Converter 1 Output 12V 8.3A 9V - 36V Input
Datasheet
PRQ100W-Q24-S12-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr CUI Inc.
Series PRQ100W-D (100W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Current - Output (Max) 8.3A
Power (Watts) 100 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 90%
Mounting Type Through Hole
Package / Case Quarter Brick
Size / Dimension 2.43" L x 1.58" W x 0.50" H (61.8mm x 40.2mm x 12.7mm)
Supplier Device Package Quarter Brick
Approval Agency CE
Base Product Number PRQ100W
Standard Package 24
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1350703-PRQ100W-Q24-S12-D
Ultra Librarian 3D Model Ultra Librarian PRQ100W-Q24-S12-D CAD Model

Description

The CUI Inc. PRQ100W-D (100W) is a power supply board mount DC DC converter with an isolated module type.

  • Type: Isolated Module
  • Power: 100W
  • Package: Quarter Brick
  • Dimensions: 2.43" L x 1.58" W x 0.50" H
  • Efficiency: 90%
  • Voltage Isolation: 2.25 kV
  • Maximum Output Current: 8.3A
  • Input Voltage: 9V to 36V
  • Application: ITE (Commercial)
  • Standard Package: 24
  • Operating Temperature: -40°C to 85°C (with derating)
  • ECCN: EAR99
