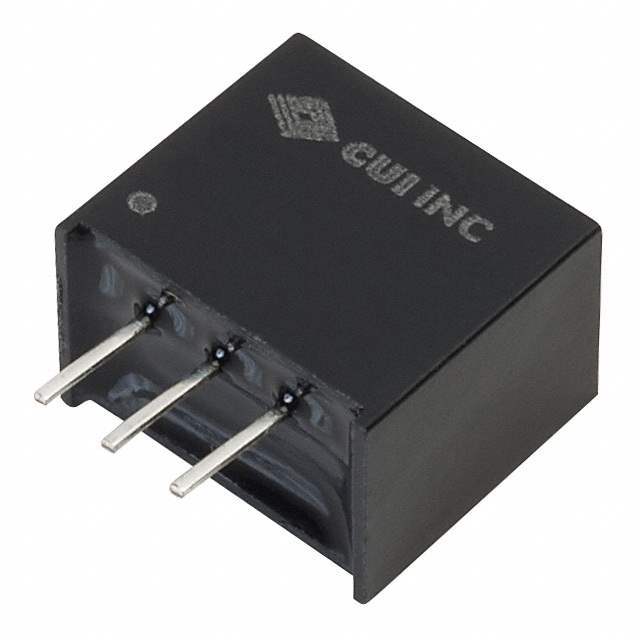

P7805-Q12-S2-S CUI Inc.
Same model may have multiple batches, images only for reference.

P7805-Q12-S2-S

Part No P7805-Q12-S2-S
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 2.5V 1W
Datasheet
P7805-Q12-S2-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203554-P7805-Q12-S2-S
Manufacturer CUI Inc.
Category Power Supplies - Board Mount DC DC Converters
Series P7805-S
Package Tube
Product Status Active
Type Linear Regulator Replacement
Mounting Type Through Hole
Package / Case 3-SIP Module
Size / Dimension 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm)
Approval Agency EN
Ultra Librarian 3D Model Ultra Librarian P7805-Q12-S2-S CAD Model

Description

FEATURES
• up to 500 mA current output
• operating temperature range (-40~85°C)
• pin comparable to LM78 linear regulators
• wider input range
• suited for negative output applications
• low ripple and noise
• efficiency up to 96%
