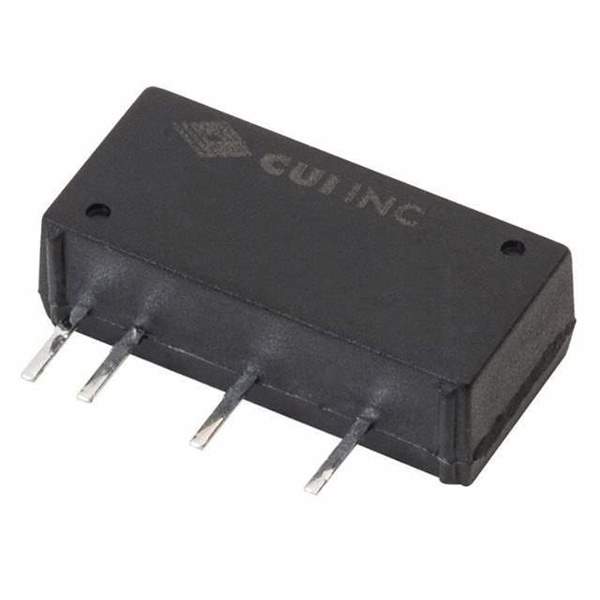

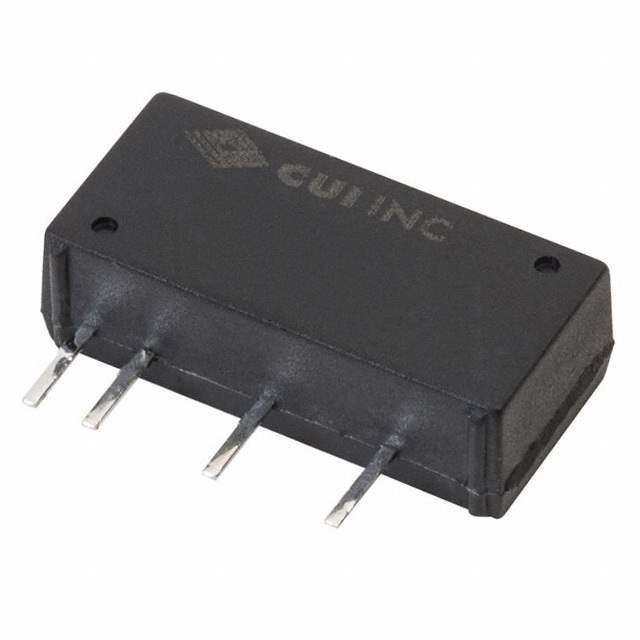

PDM2-S5-S5-S CUI Inc.
Same model may have multiple batches, images only for reference.

PDM2-S5-S5-S

Part No PDM2-S5-S5-S
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2W
Datasheet
PDM2-S5-S5-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310536-PDM2-S5-S5-S
Category Power Supplies - Board Mount - DC DC Converters
Mfr CUI Inc.
Packaging  Tube
Part Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 400mA
Ultra Librarian 3D Model Ultra Librarian PDM2-S5-S5-S CAD Model

Description

  • 2 W isolated output
  • smaller package
  • single/dual unregulated output
  • 1,500 Vdc isolation
  • short circuit protection
  • extended temperature range (-40~105°C)
  • antistatic protection up to 8kV
  • high efficiency at light load
  • efficiency up to 86%
