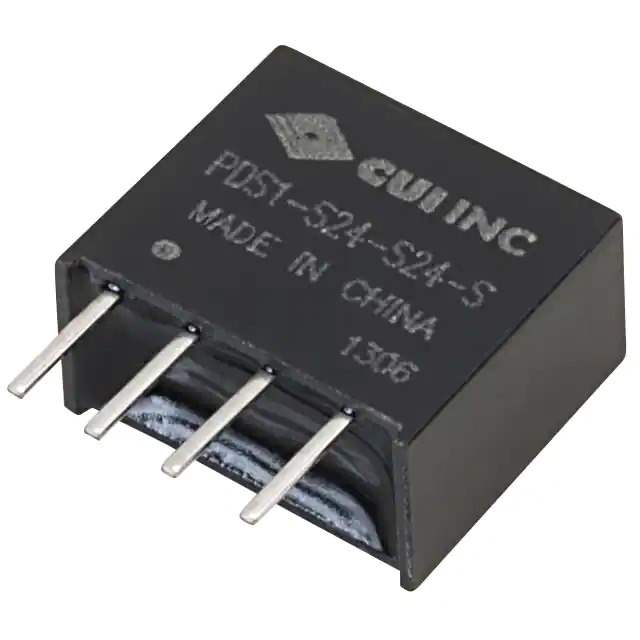

Same model may have multiple batches, images only for reference.

PDS1-S5-S3-S

Name: PDS1-S5-S3-S
Brand: CUI Inc.
SKU: 847869
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PDS1-S5-S3-S
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 1W / Isolated Module DC DC Converter 1 Output 3.3V 303mA 4.5V - 5.5V Input
Datasheet	PDS1-S5-S3-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	PDS1-S (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	3.3V
Current - Output (Max)	303mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	80%
Mounting Type	Through Hole
Package / Case	4-SIP Module
Size / Dimension	0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm)
Base Product Number	PDS1-S5
Standard Package	43 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	847869-PDS1-S5-S3-S
Ultra Librarian 3D Model	Ultra Librarian PDS1-S5-S3-S CAD Model

Alternative Products

Description

The PDS1-S5-S3-S is an isolated module DC-DC converter from the PDS1-S (1W) series of power supplies from CUI Inc.

Applications: ITE (Commercial).
Power: 1W.
Protection: SCP (Short Circuit Protection).
Outputs: One output.
Current Output: 303mA.
Voltage Output: 3.3V.
Voltage Isolation: 1.5 kV.
Input Voltage Range: 4.5V to 5.5V.
Efficiency: 80%.
Mounting: Through hole.
Package: 4-SIP Module.
Temperature Range: -40°C to 105°C with derating.
Package Quantity: Tube package of 43 pcs.
Status: Active.
REACH: Unaffected.
