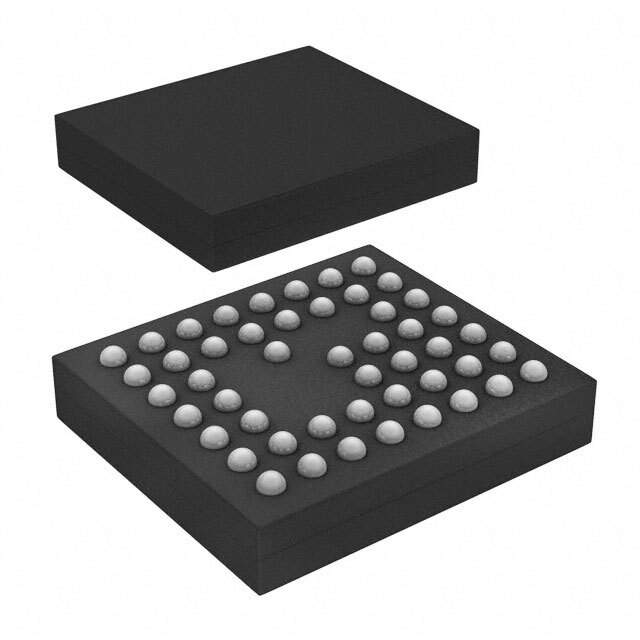

BCM20704UA2KFFB1GT Real Image
Same model may have multiple batches, images only for reference.

BCM20704UA2KFFB1GT

Part No BCM20704UA2KFFB1GT
Manufacturer Cypress Semiconductor Corp
Catalog RF Transceiver ICs
Description IC RF BLUETOOTH 802.15.4 49VFBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Cypress Semiconductor Corp
Packaging Reel
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.1 +EDR
Modulation 4DQPSK, 8DPSK, GFSK
Frequency 2.4GHz
Data Rate (Maximum) 3Mbps
Power - Output 9dBm
Sensitivity -96dBm
Serial Interfaces I2C, I2S, SPI, UART, USB
GPIO 8
Supply Voltage (V) 3.3V
Current - Receiving 38mA
Current - Transmitting 38mA
Temperature Range - Operating -30°C ~ 85°C
Mounting Style SMD
Manufacturer Package 49-VFBGA, FCBGA
Manufacturer Pack Quantity 2,500
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807536-BCM20704UA2KFFB1GT
Ultra Librarian 3D Model Ultra Librarian BCM20704UA2KFFB1GT CAD Model

Description

The Cypress Semiconductor Corp BCM20704UA2KFFB1GT is a TxRx + MCU device that operates at a frequency of 2.4GHz.

  • Protocol: Bluetooth v4.1 +EDR
  • Data Rate: Up to 3Mbps
  • GPIO: 8
  • Serial Interfaces: I2C, I2S, SPI, UART, USB
  • Supplier Device Package: 49-VFBGA, FCBGA
  • Temperature Range: -30°C to 85°C
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 2,500
  • MSL Level: 3 (168 hours)
  • Supply Voltage: 3.3V
