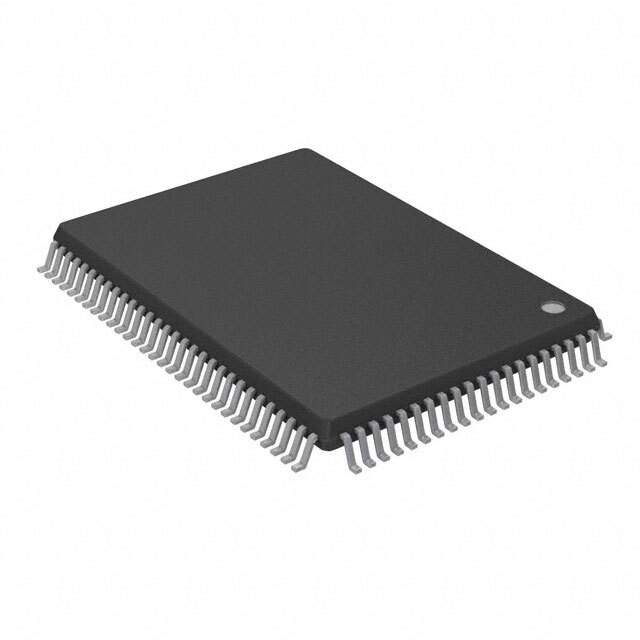

MB90F947APFR-GS-ER Real Image
Same model may have multiple batches, images only for reference.

MB90F947APFR-GS-ER

Part No MB90F947APFR-GS-ER
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 128KB FLASH 100QFP / F²MC-16LX series Microcontroller IC 16-Bit 24MHz 128KB (128K x 8) FLASH 100-QFP (14x20)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Cypress Semiconductor Corp
Series F2MC-16LX MB90945
Package Tape & Reel (TR)
Core Processor F2MC-16LX
Core Size 16-Bit
Speed 24MHz
Connectivity CANbus, I²C, LINbus, SCI, Serial I/O, UART/USART
Peripherals POR, PWM, WDT
Number of I/O 82
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
RAM Size 6K x 8
Supply Voltage - Operating 3.5V ~ 5.5V
Data Converters A/D 15x8/10b
Oscillator Type External
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 100-BQFP
Supplier Device Package 100-QFP (14x20)
Base Product Number MB90F947
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Standard Package 500
Win Source Part Number 1076236-MB90F947APFR-GS-ER
Ultra Librarian 3D Model Ultra Librarian MB90F947APFR-GS-ER CAD Model

Description

The 1076236-MB90F947APFR-GS-ER is an embedded microcontroller integrated circuit (IC) belonging to the F2MC-16LX MB90945 series of electronic components.

  • Series: F2MC-16LX MB90945
  • Package: tape and reel
  • Standard Package: 500
  • Mounting: SMD (SMT)
  • Core Size: 16-bit
  • Connectivity: CANbus, I²C, LINbus, SCI, Serial I/O, and UART/USART
  • Peripherals: POR, PWM, and WDT
  • I/O: 82
  • Program Memory Size: 128KB (128K x 8)
  • Program Memory Type: FLASH
  • Data Converter: A/D 15x8/10b
  • Oscillator Type: external
  • Voltage Supply: 3.5V ~ 5.5V
  • REACH: unaffected
  • HTSUS: 8542.31.0001
  • Manufacturer: Cypress Semiconductor Corp
