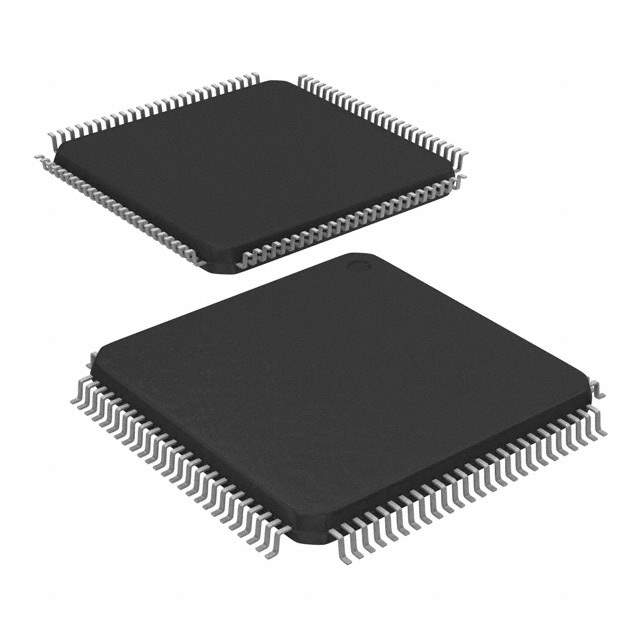

MB9AF156NAPMC-G-JNE2 Real Image
Same model may have multiple batches, images only for reference.

MB9AF156NAPMC-G-JNE2

Part No MB9AF156NAPMC-G-JNE2
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Description MCU 32-bit ARM Cortex M3 RISC 512KB Flash 3.3V 100-Pin LQFP Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package LQFP
Core Architecture ARM
Data Bus Width 32 b
Frequency 40 MHz
Interface EBI/EMI, I2C, SPI, UART, USART
Max Frequency 40 MHz
Max Operating Temperature 85 °C
Memory Size 544 kB
Memory Type FLASH
Min Operating Temperature -40 °C
Number of I/Os 83
Number of Programmable I/O 83
Number of Timers/Counters 18
Oscillator Type Internal
Peripherals DMA, LVD, POR, PWM, WDT
RAM Size 64 kB
RoHS Compliant
Schedule B 8542310000
Watchdog Timer Yes
Win Source Part Number 1182216-MB9AF156NAPMC-G-JNE2
Categories Embedded - Microcontrollers
Manufacturer Cypress Semiconductor Corp
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MB9AF156NAPMC-G-JNE2 CAD Model

Description

The Cypress Semiconductor Corp MB9AF156NAPMC-G-JNE2 is a microcontroller that operates on an ARM core architecture.

  • Frequency: 40 MHz
  • Memory Size: 544 kB
  • Memory Type: FLASH
  • Interface: EBI/EMI, I2C, SPI, UART, and USART
  • Peripherals: DMA, LVD, POR, PWM, and WDT
  • RAM Size: 64 kB
  • Oscillator Type: internal
  • Package: LQFP
  • Programmable I/Os: 83
  • Timers/Counters: yes
  • RoHS: compliant
  • Temperature Range: -40 °C to 85 °C
