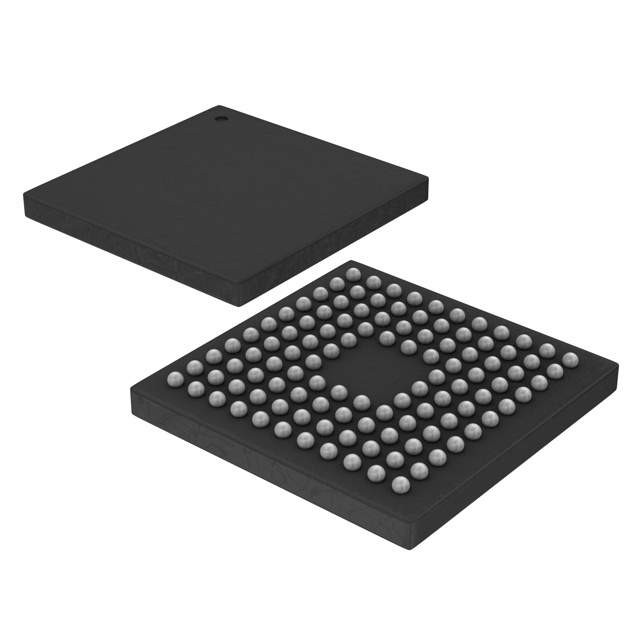

MB9AF316NABGL-GE1 Real Image
Same model may have multiple batches, images only for reference.

MB9AF316NABGL-GE1

Part No MB9AF316NABGL-GE1
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Description MCU 32-bit FM3 ARM Cortex M3 RISC 512KB Flash 3.3V/5V 112-Pin FBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package LQFP
Core Architecture ARM
Data Bus Width 32 b
Frequency 40 MHz
Interface EBI/EMI, I2C, LIN, UART, USART, USB
Max Frequency 40 MHz
Maximum Operating Temperature 105 °C
Max Supply Voltage 5.5 V
Memory Size 512 kB
Memory Type FLASH
Min Operating Temperature -40 °C
Min Supply Voltage 2.7 V
Number of I/Os 83
Number of Pins 112
Oscillator Type Internal
Packaging Cut Tape
Peripherals DMA, LVD, POR, PWM, WDT
RAM Size 32 kB
REACH SVHC No SVHC
RoHS Compliant
Weight 1.319103 g
Win Source Part Number 1076328-MB9AF316NABGL-GE1
Categories Embedded - Microcontrollers
Manufacturer Cypress Semiconductor Corp
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian MB9AF316NABGL-GE1 CAD Model

Description

The Cypress Semiconductor Corp MB9AF316NABGL-GE1 is an embedded microcontroller used in electronic devices.

  • Frequency: 40 MHz
  • Memory Size: 512 kB
  • Oscillator Type: Internal
  • Peripherals: DMA, LVD, POR, PWM, WDT
  • Supply and Demand Status: Shortage
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 105 °C
  • Alternative parts (cross-reference): MB9AF316MAPMC-G-JNE2, MB9AF314NAPMC-G-JNE2, MB9AF314MAPMC-G-JNE2, MKE06Z128VLK4, MKE04Z128VLK4, S9KEAZ128AMLKMB9AF316NABGLGE1
