Same model may have multiple batches, images only for reference.

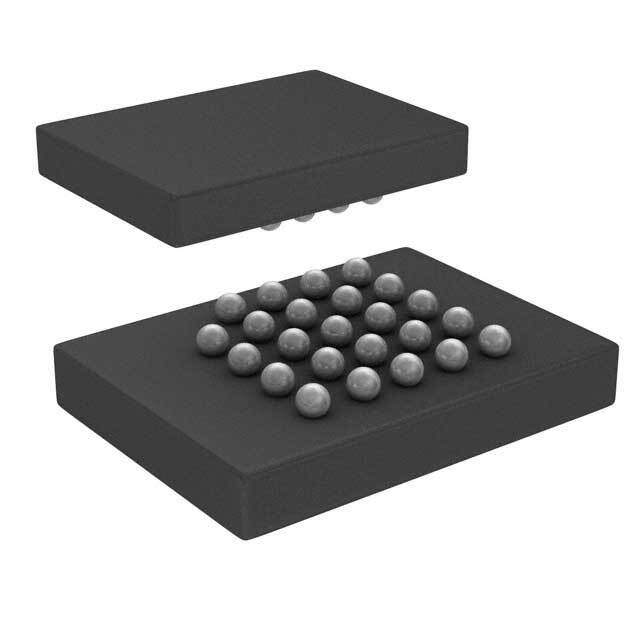

S25FS064SAGBHV020 Real Image
Same model may have multiple batches, images only for reference.

S25FS064SAGBHV020

Part No S25FS064SAGBHV020
Manufacturer Cypress Semiconductor Corp
Catalog Unclassified Memory
Description IC FLASH 64MBIT SPI/QUAD 24BGA / FLASH - NOR Memory IC 64Mb (8M x 8) SPI - Quad I/O 133 MHz 24-BGA (6x8)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Cypress Semiconductor Corp
Series FS-S
Package Tray
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 64Mb (8M x 8)
Memory Interface SPI - Quad I/O
Clock Frequency 133 MHz
Voltage - Supply 1.7V ~ 2V
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting SMD (SMT)
Package / Case 24-TBGA
Supplier Device Package 24-BGA (6x8)
Base Product Number S25FS064
Other Names -S25FS064SAGBHV020,CYPCYPS25FS064SAGBHV020,428-3790,2156-S25FS064SAGBHV020,2015-S25FS064SAGBHV020
Standard Package 3,380
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071
Win Source Part Number 1255096-S25FS064SAGBHV020
Ultra Librarian 3D Model Ultra Librarian S25FS064SAGBHV020 CAD Model

Description

The S25FS064SAGBHV020 is a 64Mb (8M x 8) Non-Volatile FLASH-NOR memory IC from Cypress Semiconductor Corp.

  • Voltage: between 1.7V to 2V
  • Clock Frequency: 133 MHz
  • Memory: SPI - Quad I/O interface
  • Package: 24-TBGA package
