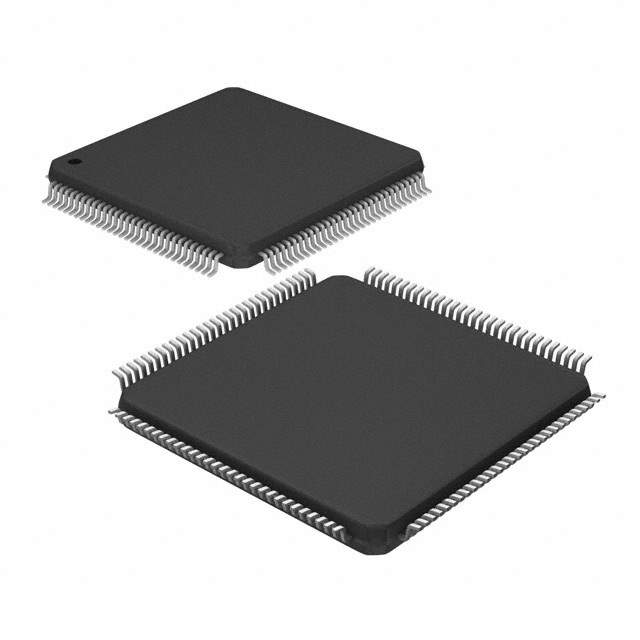

S6E2DH5GJAMV20000 Real Image
Same model may have multiple batches, images only for reference.

S6E2DH5GJAMV20000

Part No S6E2DH5GJAMV20000
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 384KB FLASH 120LQFP / ARM® Cortex®-M4F series Microcontroller IC 32-Bit Single-Core 160MHz 384KB (384K x 8) FLASH 120-LQFP (16x16)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Cypress Semiconductor Corp
Series FM4 S6E2DH
Package Tray
Core Processor ARM® Cortex®-M4F
Core Size 32-Bit Single-Core
Speed 160MHz
Connectivity CANbus, CSIO, EBI/EMI, I²C, LINbus, SD, SPI, UART/USART, USB
Peripherals DMA, I2S, LVD, POR, PWM, WDT
Number of I/O 90
Program Memory Size 384KB (384K x 8)
Program Memory Type FLASH
RAM Size 36K x 8
Supply Voltage - Operating 2.7V ~ 3.6V
Data Converters A/D 24x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 120-LQFP
Supplier Device Package 120-LQFP (16x16)
Base Product Number S6E2DH5
Standard Package 84
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1264843-S6E2DH5GJAMV20000
Ultra Librarian 3D Model Ultra Librarian S6E2DH5GJAMV20000 CAD Model

Description

The S6E2DH5 is an integrated circuit manufactured by Cypress Semiconductor Corp.

  • Core Size: 32-bit single-core
  • Clock Frequency: 160MHz
  • Designed for: Various applications
  • Category: Embedded-microcontrollers
  • Connectivity: CANbus, CSIO, EBI/EMI, I2C, LINbus, SD, SPI, UART/USART, and USB
  • Peripherals: DMA, I2S, LVD, POR, PWM, and WDT
  • Memory Size: 384KB (384K x 8)
  • Program Memory Type: FLASH
  • Suitable for: Electronic devices that require high performance
