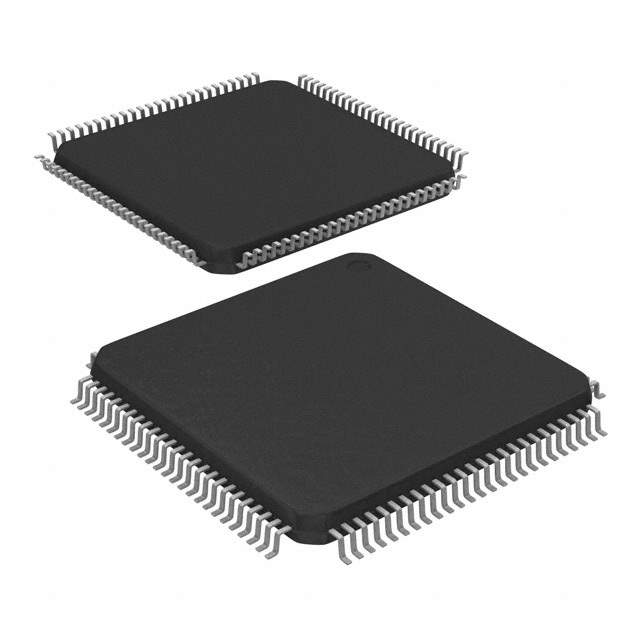

S6E2H16F0AGV20000 Real Image
Same model may have multiple batches, images only for reference.

S6E2H16F0AGV20000

Part No S6E2H16F0AGV20000
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Cypress Semiconductor Corp
Series FM4 S6E2H1
Package Tray
Core Processor ARM® Cortex®-M4F
Core Size 32-Bit Single-Core
Speed 160MHz
Connectivity CSIO, EBI/EMI, I2C, LINbus, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 80
Program Memory Size 544KB (544K x 8)
Program Memory Type FLASH
RAM Size 64K x 8
Supply Voltage - Operating 2.7V ~ 5.5V
Data Converters A/D 24x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 100-LQFP
Supplier Device Package 100-LQFP (14x14)
Base Product Number S6E2H16
Other Names S6E2H16F0AGV20000,2156-S6E2H16F0AGV20000,428-3680,CYPCYPS6E2H16F0AGV20000,S6E2H16F0AGV2000M
Standard Package 900
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1264817-S6E2H16F0AGV20000
Ultra Librarian 3D Model Ultra Librarian S6E2H16F0AGV20000 CAD Model

Description

The S6E2H16F0AGV20000 is a 32-bit single-core microcontroller from Cypress Semiconductor Corp's FM4 S6E2H1 series.

  • Core Processor: ARM Cortex-M4F
  • Speed: 160MHz
  • Program Memory: 544KB
  • Program Memory Type: FLASH
  • RAM Size: 64K x 8
  • I/O: 80
  • Peripherals: DMA, LVD, POR, PWM, WDT
  • Connectivity: CSIO, EBI/EMI, I²C, LINbus, and UART/USART
  • Oscillator Type: Internal
  • Operating Temperature: -40°C to 125°C
  • Package: 100-LQFP
  • Operating Voltage: 2.7V to 5.5V
