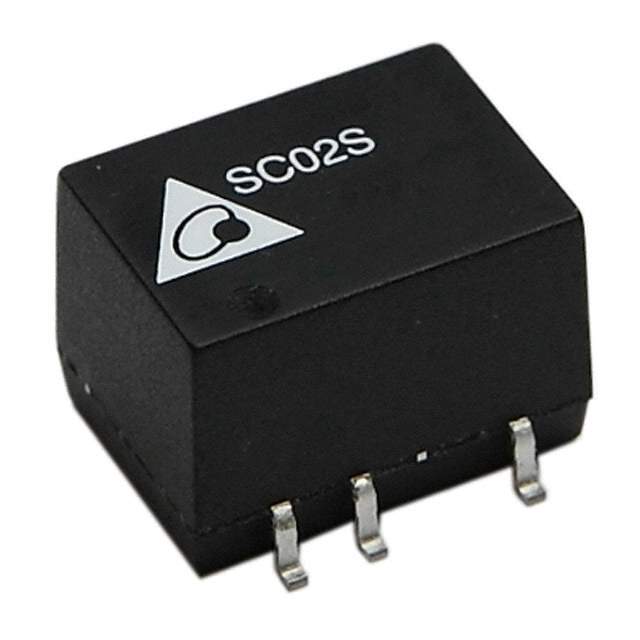

Same model may have multiple batches, images only for reference.

SC02S2405A

Get a Quote

Part No	SC02S2405A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 2W / Isolated Module DC DC Converter 1 Output 5V 400mA 21.6V - 26.4V Input
Datasheet	SC02S2405A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SC02S/D (2W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	5V
Current - Output (Max)	400mA
Power (Watts)	2 W
Voltage - Isolation	1 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	78%
Mounting	SMD (SMT)
Package / Case	8-SMD Module, 5 Leads
Dimension	0.50" L x 0.37" W x 0.35" H (12.8mm x 9.3mm x 9.0mm)
Base Product Number	SC02S
Other Names	941-1304
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237478-SC02S2405A
Ultra Librarian 3D Model	Ultra Librarian SC02S2405A CAD Model

Alternative Products

Description

The SC02S/D (2W) is an isolated module power supply with Short Circuit Protection (SCP).

Suitable for: medical applications
Power Output: 2W
Maximum Output Current: 400mA
Efficiency: 78%
Input Voltage: 21.6V to 26.4V
Output Voltage: 5V
Module Package: surface mount device (SMD) with an 8-SMD module, 5 leads package/case
Operating Temperature: -40°C to 85°C
Dimension: 0.50" L x 0.37" W x 0.35" H (12.8mm x 9.3mm x 9.0mm)
Manufacturer: Delta Electronics
