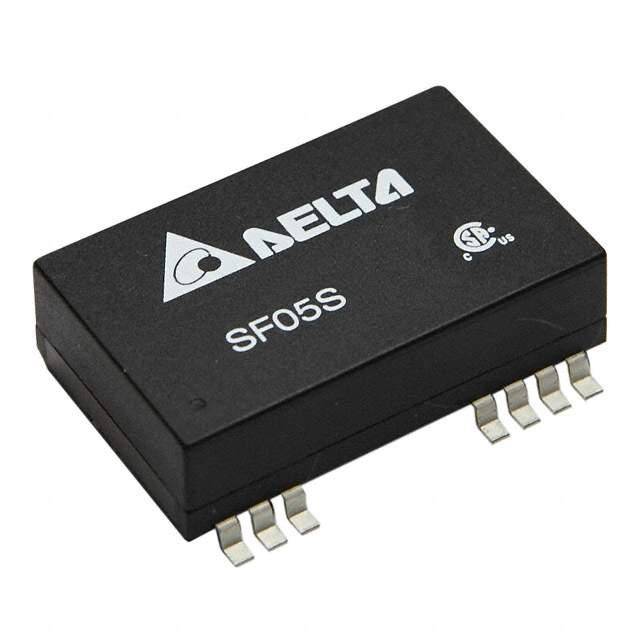

Same model may have multiple batches, images only for reference.

SF05S1215A

Get a Quote

Part No	SF05S1215A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 5W / Isolated Module DC DC Converter 1 Output 15V 333mA 9V - 18V Input
Datasheet	SF05S1215A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SF05S/D (5W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	15V
Current - Output (Max)	333mA
Power (Watts)	5 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	Remote On/Off, OCP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	83%
Mounting	SMD (SMT)
Package / Case	24-SMD Module, 12 Leads
Dimension	1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	SF05S
Other Names	941-1365
Standard Package	10
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237432-SF05S1215A
Ultra Librarian 3D Model	Ultra Librarian SF05S1215A CAD Model

Alternative Products

Description

The Delta Electronics SF05S/D (5W) series isolated module is a high-performance DC-DC converter designed for medical applications.

Voltage-Isolation: rating of 1.5 kV
Output Current: maximum output current of 333mA @ 15V
Package: 24-SMD module, 12 leads
Mounting: SMD (SMT) technology
Efficiency: 83%
Features: Remote On/Off, OCP, SCP, UVLO features
Temperature Range: -40°C to 71°C
Dimensions: 1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)
Supplied: in a tube package with 10 units per package
